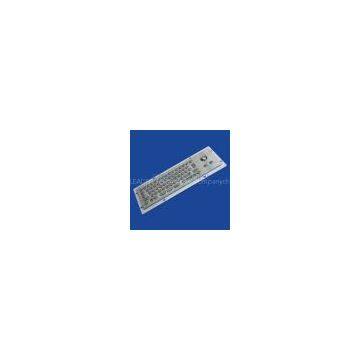

66 keys compact format vandal proof stainless steel industrial keyboard with trackball

66 keys compact format vandal proof stainless steel industrial keyboard with trackball

 Rugged stainless steel, water-proof, vandal-proof compact size keyboard with 66 customizable, full travel keys( 3 spacebar keys) and integrated optical trackball

Key Features:

1) 66 keys(3 spacebar keys), compact size with integrated optical trackball, panel mount
2) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable

Specifications:

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics
- Trackball: Stainless steel trackball (Dia: 25mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
  Emission: EN 50081-1
  Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant


Environmental Characteristics


Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

- Weight: 1.80kg
- Dimension:
  Front panel: 293.0x87.0 mm
  Back panel: 317.0x111.0 mm

  Thickness: 33.6 mm (to where the tallest component is)
