Certification:CE,FCC

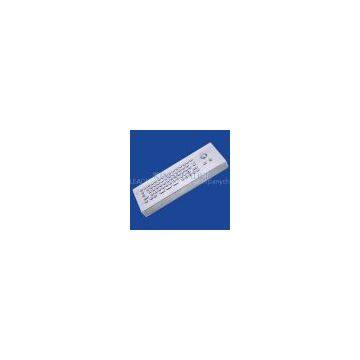

Brushed stainless steel Metal computer desktop Keyboard MKB-66-TB-MDT
Key Features:
-Desktop style
-66 keys(among them, 3 spacebar keys), compact size with integrated optical trackball
-Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
-Specially designed to operate in harsh environments, making it ideal for demanding applications in industrial environment
-Built from stainless steel, highly resistant to impact and scratch damage
-Dust-resistant and liquid-resistant, meet IP65 requirement
-PS/2 or USB interface for option
-Customizable layout
Specifications:
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball: Stainless steel trackball (Dia: 25mm)
Electrical Data
- Power supply voltage: DC 5 ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:12015g
- Key travel: 2.0mm
- Lifetime (cycles): Min 2, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and Dimension
- Weight: 1.80kg
- Dimension: 293.0 x 87.0 x 33.60 mm
