Certification:BQB, FCC

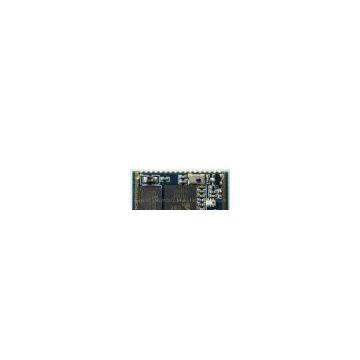

Bluetooth Class 2 (max 4dBm)BC4 V2.1 + EDR module with 8M bits for GPS receiver
Product Description
This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR Bluecore 4 chip set which can support Bluetooth V2.1+EDR standard. With regular SPP profile, the module can support maximum baud rate up to 921.6Kbps at its UART interface. The AT command set allows the host to configure the module or the communication parameters, which makes the module very flexible but easy to use. Beside of the SPP profile, the module is also suitable for data communication applications such as DUN, OPP, FTP, PBAP and HID. Voice applications such as HSP and HFP are also possible by using with external voice CODEC via PCM bus. USB interface is included which can be used as a USB to wireless UART converter.
Applications
RS232 cable replacement.
Wireless USB to wireless COM port converter.
Wireless keyboard or Wireless mouse
GPS receiver
PDA
Wireless printer
Heath care equipements.
Industrial applications
Product Benefits
Flexible and cost effective
Low power consumptions of only 80mW
Compact Bluetooth stack firmware, easy to use.
Product Specification
|
Dimension |
25x14.5x2.2 mm |
|
Bluetooth Standard |
V2.1+EDR |
|
RF Power |
-6dBm to +4dBm |
|
Receiving Sensitivity |
-82dBm |
|
Program Flash Memory |
8M bits |
|
Audio Interfaces |
PCM |
|
Host Interface |
USB and UART |
|
Supply Voltage |
3.0V – 3.6V |
