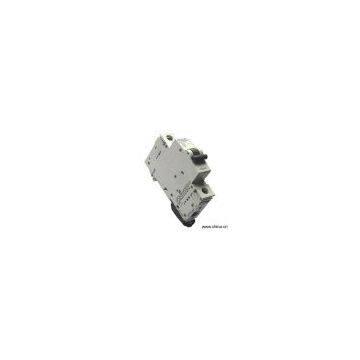

Sell Miniature Circuit Breaker

Model No.:C45N
Product Origin:China
Brand Name:powemake
Price Terms:FOB, CNF, CIF
Payment Terms:T/T, L/C at sight
Certification:
Description:Product Name: Miniature Circuit BreakerModel Number: C45NPlace of Origin: ChinaFeatures: 1) Protection and control of circuit against overload and short circuit in building installations such as houses, offices, commercial complex, motor systems (D curve) and industrial installations for switching, control, protection and regulation of electrical circuits 2) Also suitable for use in switchgear panels, railway and marine applications Specifications: 1) Standard: IEC60898, GB10963 2) Rated current (In): up to 63A 3) Rated voltage (Un): AC 230 (240) / 400 (415) V 4) Poles: 1P, 2P, 3P, 4P 5) B curve: the magnetic releases operate between 3 and 5 In 6) C curve: the magnetic releases operate between 5 and 10 In 7) D curve: the magnetic releases operate between 10 and 20 In 8) Connection capacity: rigid conductor 25mm2 flexible conductor 16mm2 9) Ultimate short-circuit breaking capacity (Inc): 6,000A 10) Endurance: a) On load: 2,000 cycles b) Off load: 2,000 cycles
