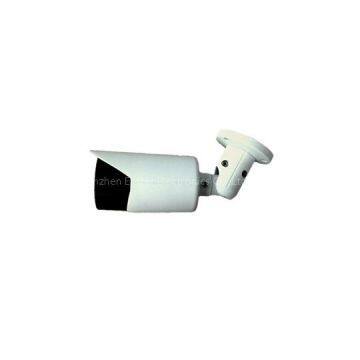

IP Camera

Model: EST-IPA6473

Feature:

IP66 Waterproof  Bullet IP Camera

Frame Rate:NTSC:30fps PAL:25fps

Lens:Board Lens 3.6mm (3M Pixels)

IR Led:36pieces x F5   IR Range: 30m

Support more than 20 languages

& Mobile Phone View&Free CMS

& DDNS&Motion Detection

Power: DC12V. POE optional

Audio Funtion Optional

Ambarella/Hisilicon/TI Chipset Optional

Specification

Model No.：EST-IPA6473 EST-IPH6472EST-IPH6472E

Camera Type：IP Camera

System：Embedded RTOS design

Camera

Effective Pixels：3.0 Mega Pixels  2.0 Megapixels  2.0 Mega Pixels

            Main stream:2048*1536;1920*1080  Main stream:1920*1080;1280*720  Main stream:1920*1080;1280*720

            Sub stream:704*576  Sub stream:704*576  Sub stream:704*576

Frames Rates：

PAL:20fps(2048*1536)25fps(1920*1080) PAL:25fps(1920*1080)/(1280*720)   PAL:25fps(1920*1080)/(1280*720)

NTSC:20fps(2048*1536)30fps(1920*1080)/ NTSC:30fps(1920*1080)/(1280*720) NTSC:30fps(1920*1080)/(1280*720)

Image Sensor：

1/3" Aptina CMOS Sensor

1/2.8" SONY Exmor IMX222 CMOS Sensor

1/2.7" OV2710 CMOS Sensor

3.5 Megapixel resolution (2304H*1536V)

2.48 Megapixel resolution (2000H*1241V)

2.0 Megapixel resolution

DSP：

Dual core 32-bit DSPDual core 32-bit DSPDual core 32-bit DSP

(A5S88) (Hi3516) (Hi3516)

Min. Illumination：

Color 0.01Lux@F1.2  Color 0.01Lux@F1.2   Color 0.01Lux@F1.2

B/W 0.001 Lux@F1.2  B/W 0.001 Lux@F1.2   B/W 0.01 Lux@F1.2

Adjust Parameters： DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
