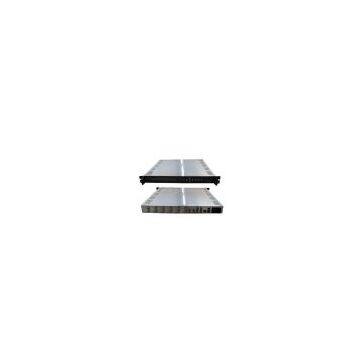

Help CenterTuner Input Multiplexing Scrambler
Related Products
Outline
NDS3712 Tuner Mux-scrambler is the latest demodulation, multiplexing and scrambling device for digital TV broadcasting head-end system. The tuner mux-scrambler has maximum 6 channels tuner input (tuner can be DVB-S/DVB-S2) and 2 channels ASI input, while it has 2 groups of ASI output and 2 corresponding IP output (share one megabits DATA port). It can multiplex and encrypt the FTA stream to output. In other words, one tuner mux-scrambler can work as 6 standalone FTA IRD, one two separate ASI output multiplexer and two scrambler. In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Features
Fully complies with ISO13818 and EN300468 standard
Integrated demodulating, multiplexing and scrambling functions
6 tuner inputs ( tuner can be DVBS/S2 optional) and 2 ASI inputs
MPEG-2 and mpeg-4 transport stream re-multiplexing
SPTS and MPTS code stream multiplexing
Supports accurate PCR and PID re-mapping
Two groups( each group has 2 channels) separate TS output
Two channels IP output(the mirrors of the 2 ASI outputs)
Supports PSI/SI editing
Fully supports DVB general scrambling system (ETR289)
Complies with DVB common scrambling algorithm, supports the simulcrypt scrambling mode, compatible with multiple CA system
Simultaneously supports 4 different CAS simulcrypt
Supports CAS remote connection scrambling
Supports huge buffer memory and resists unexpected code stream
Supports multiplexing the same program to all the output channels
Alarming function
Supports network remote upgrading
Full-size LCD display and NMS operation
Specifications
| Input interface | Tuner | 6 tuners (DVB-S/S2 optional) |
| ASI | 2 channels (Up to 214Mbps per channel) | |
| Re-multiplex | MPEG-2 and MPEG-4 TS re-multiplex | |
| PID re-mapping ( auto/manual optional) | ||
| PCR correction | ||
| Automatically generating PSI/SI table | ||
| Input | Packet format | 204/188 self-adaption |
| Scrambling | Simul-crypt CA | 4 |
| Standard | ETSI 101 197,ETSI 103 197 | |
| Connection | Local/Remote connect | |
| Output port | ASI | 2 groups separate outputs (each group has 2 channels) |
| IP | 2 channels separate IP output(MAX 80Mbps | |
| PID | Output range | 0000—1FFF |
| PID transparent | Any PID transparent and mapping achievable | |
| Amount of output PID per input | 256( at most) | |
| NMS port | Ethernet port | 10/100M |
| Miscellaneous | Demission (W x L x H) | 482mm×410mm×44mm |
| Weight | 4kg | |
| Temperature | 0~45℃(operation),-20~80℃(storage) | |
| Power supply | AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz | |
| Consumption | ≈18W | |
