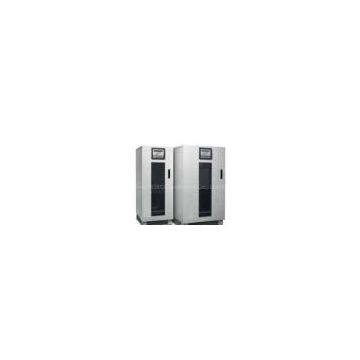

Help CenterLow Frequency UPS GP9332C 10-120KVA (3Ph In/3Ph Out)
Related Products
-
LED High Frequency Online UPS HP9110E Series 1KVA/2KVA/3KVANegotiableMOQ: 1 Piece -
LED High Frequency Online UPS HP9110E 6 - 10KVA (1Ph In/1Ph Out)NegotiableMOQ: 1 Piece
-
LED High Frequency Online UPS HP9310E 10 - 20KVA (3Ph In/1Ph Out)NegotiableMOQ: 1 Piece
-
High Frequency Online UPS HP9117C Series 0.7 - 3KVANegotiableMOQ: 1 Piece
-
High Frequency Online UPS 1 - 10KVANegotiableMOQ: 1 Piece
Certification:CE,ROHS,ISO9000
Key Features
1. Advanced operation mode
2. DSP control
3. Double CPU control
4. Modularize
5. Battery can be sharing
6. Up to 8 units in parallel
7. Manual maintenance bypass
8. Wide input voltage range
7. High output power factor
9. Strong environmental adaptability
10. Advanced battery management
11. N+X parallel redundancy
12. Compatible with generator
13. Strong shock resistance ability
14. EPO function
15. Full protection against over-discharge, overcharge, over load.
LBS function
· LBS function supports the two independent input to improve the reliability of the system.
High reliability
True on-line static bypass technology, to provide strong overload and fault protection device.
Internal manual maintenance bypass, further improve the reliability of continuous operation of the load.
Network management humanity
Communicate with PC by RS232.
Use SNMP adapter, UPS can realize remote network management function.
Optimized battery performance
Intelligent battery management function (ABM)
Automatically convert to constant-current constant-voltage charging technology.
Parallel Configuration of up to 8 units of Low Frequency Online UPS GP9332C 10-120KVA:
Can parallel 8 units UPS;
Parallel UPS units can share a battery pack;
Non-fixed master/slave parallel
Application:
large-medium computer data center, industrial process and other mission-critical equipment
Technical Specifications of Online UPS GP9332C 10-120KVA
|
Model |
GP9332C 10-120KVA |
|||||||||
|
Rated Power (KVA) |
10KVA |
15KVA |
20KVA |
30KVA |
40KVA |
60KVA |
80KVA |
100KVA |
120KVA |
|
|
Active Power (KW) |
8KW |
12KW |
16KW |
24KW |
32KW |
48KW |
64KW |
80KW |
90KW |
|
|
Input |
||||||||||
|
Nominal Voltage |
380/400/415VAC 3-phase |
|||||||||
|
Voltage tolerance |
400V + 20%/ -25% |
|||||||||
|
Frequency |
45 ÷ 65 Hz |
|||||||||
|
Soft Start |
0 ÷ 100% in 30’’ (selectable) |
|||||||||
|
Permitted frequency tolerance |
± 2% (selectable from ± 1% to ± 5% from the front panel) |
|||||||||
|
Standard features |
Back Feed protection; separable bypass line |
|||||||||
|
Battery |
||||||||||
|
Type |
Lead, flooded and VRLA AGM / GEL; NiCd |
|||||||||
|
AC ripple |
< 1% |
|||||||||
|
Temperature compensation |
-0.5V × ℃ |
|||||||||
|
Typical charging current |
0.2 × C10 |
|||||||||
|
Output |
||||||||||
|
Number of phase |
3 + N |
|||||||||
|
Nominal voltage |
380/400/415VAC 3-phase +N |
|||||||||
|
Static stability |
± 1% |
|||||||||
|
Dynamic stability |
± 5% in 10ms |
|||||||||
|
Voltage distortion |
||||||||||
