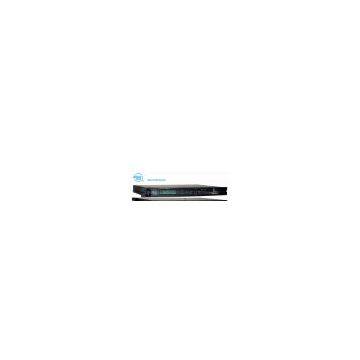

Two Separate Outputs Multiplexer
US$ 550 - 550
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jiehao
Place of Origin:
China
Model Number:
JXDH-6102
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
Jiehao
Place of Origin
China
Model Number
JXDH-6102
Detailed Product Description
Two Separate Outputs Multiplexer:
1. Multiplexing SPTS and MPTS
2. Support 8 single signal inputs
3. 2 separate outputs
Two Separate Outputs Multiplexer
Outline
JXDH-6102 multiplexer is a digital broadcasting TV system TS stream re-multiplexer. JXDH-6102 multiplexer combines several single-programs or multiple-programs, which are compressed, coded, and multiplexed according to customer request by head-end, into single transport stream. Besides, it is also able to interpolate EPG (Electronic Program Guide), CA (Conditional Access) and digital broadcasting etc. Maximally, it can synchronal multiplex 8 route input code streams, and support ASI interface. The code rate of input code stream is maximally up to 270Mbps, while code rate of four separate outputs code stream is maximally up to 155Mbps. Through auxiliary data input channel, Its dimension is standard 1U case. By watching the LCD display on the front panel, user can finish the setting of auto-running of this device.
Features
* Complying with ISO13818 standard.
* Multiplexing SPTS and MPTS code stream.
* Support 8 single signal input
* 2 separate output
* support scrambled signal transmit free
* Draw out PSI/SI from any channel
* Can point 256 PID in each channel
* Input at most 30 program each channel, and 29 output
* redefine PAT,PMT and other SI/PSI
* Support PCR adjusting and PID re-reflection
* Have the function of insert and reflection of SDT/NIT
* Able to connect independent scrambler for scrambling to specified program or service.
* Generating SPI/SI information
* Support PCR adjusting and PID re-reflection
* Output data rate 0-155Mbps,188 byte format
* Each input support 270Mbps data rate, total 8 input rate is 576Mbps
* High precision PCR revise, usually holding 20-60ns
* MPEG2 program delay less than 100μs
* PID filtration/PID redefine function. User can delete, add, revise program even the program name, PID or serials No. easily.
* Chinese and English LCD display
* Ethernet interface10/100M, long-distance control multiplexer via PC
* Have the function of parameter memory
* Have the function of PSI auto-built.
* High reliability design, stable in running
* Alarm display
* Support network upgrading
Two Separate Outputs Multiplexer:
1. Multiplexing SPTS and MPTS
2. Support 8 single signal inputs
3. 2 separate outputs
Two Separate Outputs Multiplexer
Outline
JXDH-6102 multiplexer is a digital broadcasting TV system TS stream re-multiplexer. JXDH-6102 multiplexer combines several single-programs or multiple-programs, which are compressed, coded, and multiplexed according to customer request by head-end, into single transport stream. Besides, it is also able to interpolate EPG (Electronic Program Guide), CA (Conditional Access) and digital broadcasting etc. Maximally, it can synchronal multiplex 8 route input code streams, and support ASI interface. The code rate of input code stream is maximally up to 270Mbps, while code rate of four separate outputs code stream is maximally up to 155Mbps. Through auxiliary data input channel, Its dimension is standard 1U case. By watching the LCD display on the front panel, user can finish the setting of auto-running of this device.
Features
* Complying with ISO13818 standard.
* Multiplexing SPTS and MPTS code stream.
* Support 8 single signal input
* 2 separate output
* support scrambled signal transmit free
* Draw out PSI/SI from any channel
* Can point 256 PID in each channel
* Input at most 30 program each channel, and 29 output
* redefine PAT,PMT and other SI/PSI
* Support PCR adjusting and PID re-reflection
* Have the function of insert and reflection of SDT/NIT
* Able to connect independent scrambler for scrambling to specified program or service.
* Generating SPI/SI information
* Support PCR adjusting and PID re-reflection
* Output data rate 0-155Mbps,188 byte format
* Each input support 270Mbps data rate, total 8 input rate is 576Mbps
* High precision PCR revise, usually holding 20-60ns
* MPEG2 program delay less than 100μs
* PID filtration/PID redefine function. User can delete, add, revise program even the program name, PID or serials No. easily.
* Chinese and English LCD display
* Ethernet interface10/100M, long-distance control multiplexer via PC
* Have the function of parameter memory
* Have the function of PSI auto-built.
* High reliability design, stable in running
* Alarm display
* Support network upgrading
