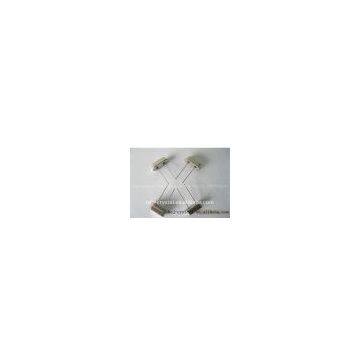

Home > Electrical & Electronics > Passive Components > Resonator > HC-49S Quartz Crystal Resonator, Mhz Crystal Resonator
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HEJ
Place of Origin:
China
Model Number:
HC-49S
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
HC-49S 4MHZ Quartz Crystal ResonatorNegotiableMOQ: 1000 Pieces -
Quartz Crystal Resonator HC-49UNegotiableMOQ: 1000 Pieces
-
Quartz Crystal Resonator HC-49U/SNegotiableMOQ: 1000 Pieces
-
25mhz Quartz Crystal Resonator HC-49SNegotiableMOQ: 1000 Pieces
-
Quartz Crystal Resonator HC-49U/S 12.000mhzNegotiableMOQ: 1000 Pieces
Brand Name
HEJ
Place of Origin
China
Model Number
HC-49S
Electrical Specifications:
| Holder Type | HC-49S |
| Frequency Range | 3.200MHz ~ 110.000MHz |
| Frequency Tolerance (at 25 °C) | ±5ppm, ±10ppm, ±20ppm, ±30ppm,or specify |
| Frquency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, ±30ppm,or specify |
| Operating Temperature Range | -10 ~ +60°C standard, -40 ~ +85°C extended |
| Shunt Capacitance | 7.0pf Max |
| Load Capacitance | Series, 8pf ~ 32pf |
| Drive Level | 0.01μW ~ 300μW, 100μW typical |
| Storage Temperature Range | -40 ~ +85°C |
| Aging | ± 5ppm / year Max |
Equivalent Series Resistance
| Frequency Range | ESR |
|
3.200- 3.579MHz |
Fundamental 250Max |
| 3.579- 4.000MHz |
Fundamental 150Max |
| 4.000- 5.000MHz | Fundamental 120Max |
| 5.000- 6.000MHz | Fundamental 100Max |
| 6.000- 7.000MHz | Fundamental 80Max |
|
7.000-14.000MHz |
Fundamental 60Max |
| 14.000-20.000MHz | Fundamental 40Max |
|
20.000-35.000MHz |
Fundamental 100Max |
|
≥35.000MHz |
Fundamental 80Max |
