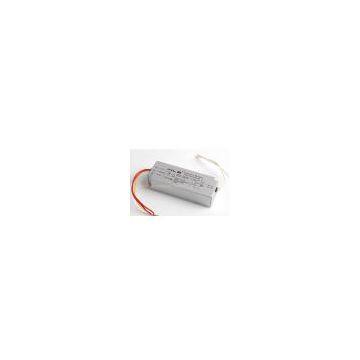

35W -DX-Metal Halide Electronic Ballast

35W HID Electronic Ballast-for Metal Halide Lamp GN035230VACDX

1.Match: international brand lighting source, and domestic brand lighting source(CMH,QMH)
2.Saving energy: 30%
3. Power factor>0.95

Parameter

1 .Input voltage range: 176v to 264v
2. Rated voltage: 220-240V
3 .Input frequency: 50-60 Hz
4. Efficiency: 88%
5. THD:≤10%
6. Output power: 35W±3%
7 .Current crest factor: 1.7
8. Rated current: 185mA
9. Output frequency: 150Hz
10. Protection of short circuit: Available
11. Protection of open circuit: Available
12. Protection of ignition failure: Available
13. Protection of thermal: Available
14. Protection of end of lamp life: Available

PHYSICAL CHARACTERS

1. Weight: 0.255KG
2. Max.lamp distance from ballast<=5.0m
3. Operating temperature range:-15~+55 °C
4. Dimension(L X W X H) : 140*53*30mm
5. Max case temperature (T C):80°C
6. Certificate: CE, ROHS And ISO9001:2008
