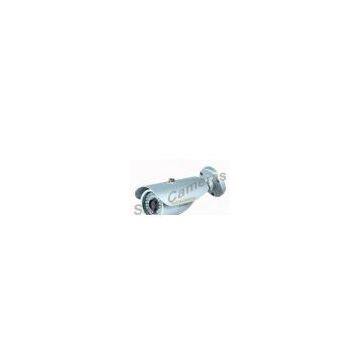

Waterproof IR Bullet Camera SC-1001D
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | OEM&safecameras | Place of Origin: | China | Model Number: | SC-1001D |
Product Description
Certification:CE,FCC,ROHS
FEATURES:
·Pure Sony & Sharp CCD DSP
·3.6/6/8mm Fixed Iris Lens
·36Pcs ф5 IR-LED night view 20-30Meters
·3-AXIS Managed Cable Anti-Cutting Bracket
·IP66 Waterproof Standard
·Dual-Glass prevents night viewing reflection and glisten problem
·700/650TVL with OSD Menu, WDR, SBLC, DNR/2D DNR, Motion Detection Optional
Specification
Model No. |
SC-1001D |
SC-1002D |
SC-1003D |
SC-1004D |
SC-1005D |
|
Camera Type |
IR Bullet Camera |
|||||
Image Sensor |
1/3 Inch SONY Super HAD CCD II |
1/4 Inch Sharp CCD |
1/3 Inch Sharp CCD |
|||
Effective Pixels |
PAL:752(H) x582(V) 440K |
PAL:512(H) x 582(V) 290K |
||||
NTSC:768(H) x494(V) 380K |
NTSC:512(H) x 492(V) 250K |
|||||
Sensing Area |
4.9mm x 3.7mm |
|||||
Signal System |
PAL /NTSC |
|||||
Horizontal Resolution |
540 TV Lines |
480 TV Lines |
420 TV Lines |
|||
Min. Illumination |
Color(0.4 Lux), B/W(0 Lux, IR On) |
Color(0.5 Lux), B/W(0 Lux, IR On) |
Color(0.5 Lux), B/W(0 Lux, IR On) |
|||
Lens Mount |
3.6/6/8mm Fixed Lens | |||||
Angle of View | 90/51/42 degree | |||||
Day/Night(Electronic) | Yes | |||||
Infrared | Yes | |||||
Scanning System | 2:1 Interlaced | |||||
synchronization | Internal | |||||
Gamma Correction | 0.45 approx | |||||
Backlinght Compensation | Auto | |||||
S/N Ratio |
More Than 48dB (AGC Off) |
|||||
Electronic Shutter |
1/50(1/60) ~ 1/100, 000 Sec. |
|||||
White Balance |
Auto |
|||||
AGC |
Auto |
|||||
Infrared Luminary |
36 pieces ф5 IR-LED |
|||||
Infrared Wavelength |
850 nm |
|||||
Illuminate Distance |
20-30M |
|||||
Waterproof Criterion |
IP66 |
|||||
Weatherproof | Yes | |||||
Vandalproof | Yes | |||||
I/O Connector |
Power : DC Power Jack , Video Output : BNC |
|||||
On-Screen Display | Yes | |||||
Video Output Level |
1.0 Vp-p (75 Ohms, composite) |
|||||
Singal Connector | BNC | |||||
Supplied Voltage |
DC12V Voltage |
|||||
Power Pigtail Lead | Yes | |||||
Power Consumption |
IR On: 280mA max., IR Off: Less than 130mA |
