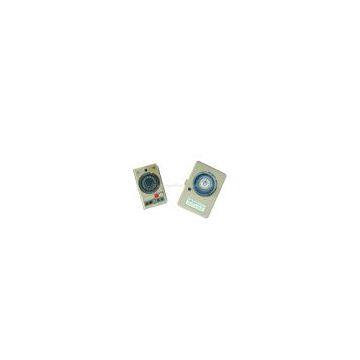

Sell Time Switch

Model No.:TB17, TB35
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:T/T
Certification:
Description:Product Name: Time SwitchModel Number: TB17, TB35Place of Origin: ChinaSPECIFICATIONS Model No. TB-17 Movement type: AC type Rated Voltage: 110V 200-220V 240V Voltage Tolerance: 85-120V 170-240V 220-260V Frequency: 50/60Hz(selection type) Power Consumption: 1.5W Time precision: Same as AC frequency Ambient Temperature: -10oC~+50C Resistive Load 250VAC 15A Lamp Load 100VAC 750W 200VAC 3000W Inductive load 10A(cos&Phi=0.7 or more) Motor Load 100 VAC 750W 200 VAC 1500W Minimum setting unit 15 minute units Minimum setting interval: 30 minutes No. of ON-OFF operations: Standard 6 operations Maximum: 48 operations are possible Weight: 270g Model No. TB-35 Movement type: AC type Rated voltage: 110V AC 220V AC 240V AC Voltage tolerance: 85~120V 170~240V 220~260V Frequency: 50Hz/60Hz(selectable) Power consumption: 1.5W Time precision: Same as AC current frequency Manual ON/OFF: ON/AUTO/OFFswitch Ambient temperature: -10oC~+50C Resistive load: 250V AC 20A Lamp load: 10A Inductive load: 12A(cos&Phi=0.7 or more) Motor load: 110V AC 750W, 220V AC 1500W Switch construction: SPST Minimum setting unit: 15 minutes/unit Minimum setting interval: 15 minutes No.of ON/OFF operations: 96 operations Weight: 485g
