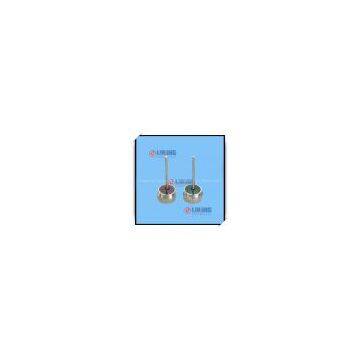

Auto Press-Fit Diode ZQ
ZQ50A ZQ40A ZQ35A ZQ25A ZQ20A
Features
Diffused junction
Low leakage
Low cost
High surge current capability
Typical Applications
Case & terminal: Red copper
Terminal: Easy for soldering
Standard cathode to case red color
Reverse Anode to case black color
| Peak repetitive reverse voltage | VRRM | |||||||
| Working peak reverse voltage | 50~600 | V | ||||||
| DC blocking voltage | VDC | |||||||
| RMS reverse voltage | VR(RMS) | 0.7xVRRM | V | |||||
| Average rectified output current @TA=150 | IF(AV) | 10 | 15 | 25 | 35 | 50 | A | |
| Non-repetitive peak forward surge current | ||||||||
| 8.3ms single half sine-wave superimposed on | IFSM | 200 | 300 | 400 | 400 | 500 | A | |
| rated load (JEDEC method) | ||||||||
| Forward voltage @IF=80A | VFM | 1.0 | 1.0 | 1.05 | 1.08 | 1.1 | V | |
| Peak reverse current @TA=25 At rated DC blocking voltage @TA=100 | IRM |
5.0 250 |
5.0 250 |
5.0 250 |
5.0 250 |
5.0 250 |
μ A | |
| Typical junction capacitance (Note 1) | Cj | 300 | pF | |||||
| Typical thermal resistance junction to case (Note 2) | Rθ JC | 1.0 | K/W | |||||
| Operating and storage temperature range | TJ, TSTG | -65 to +175 | ||||||
