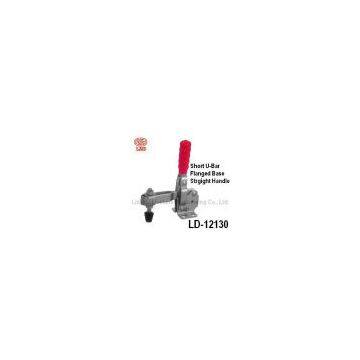

Hold Down Action Vertical Handle Toggle Clamp LD-12130 Series

Vertical Handle Toggle Clamp

Models :LD-12130

Weight:355g

Holding Capacity : 2270N

Bar Swing : 100  º

Handle Swing : 60  º

Option Model No.

LD-12130 - Flanged Base / Short U-Bar / Straight Handle

               - Weight : 0.78 lbs / 355 g

LD-12130-SS - Stainless Steel Made / Same as Model No. CH-12130

LD-12131 - Flanged Base / Short U-Bar / T Handle

               - Weight : 0.81 lbs / 370 g

LD-12132 - Flanged Base / Long U-Bar / Straight Handle

               - Weight : 0.81 lbs / 370 g

LD-12133 - Flanged Base / Long U-Bar / T Handle

               - Weight : 0.88 lbs / 400 g

LD-12135 - Straight Base / Short U-Bar / Straight Handle

               - Weight : 0.78 lbs / 355 g

LD-12136 - Straight Base / Short U-Bar / T Handle

               - Weight : 0.81 lbs / 370 g

LD-12137 - Straight Base / Long U-Bar / Straight Handle

               - Weight : 0.81 lbs / 370 g

LD-12138 - Straight Base / Long U-Bar / T Handle

               - Weight : 0.88 lbs / 400 g

LD-12140 - Flanged Base / Short Solid Bar / Straight Handle

               - Weight : 0.75 lbs / 340 g

LD-12141 - Flanged Base / Short Solid Bar / T Handle

               - Weight : 0.78 lbs / 355 g

LD-12142 - Flanged Base / Long Solid Bar / Straight Handle

               - Weight : 0.78 lbs / 355 g

LD-12143 - Flanged Base / Long Solid Bar / T Handle

               - Weight : 0.81 lbs / 375 g

LD-12145 - Straight Base / Short Solid Bar / Straight Handle

                - Weight : 0.75 lbs / 340 g

LD-12146 - Straight Base / Short Solid Bar / T Handle

               - Weight : 0.78 lbs / 355

LD-12147 - Straight Base / Long Solid Bar / Straight Handle

               - Weight : 0.78 lbs / 355 g

LD-12148 - Straight Base / Long Solid Bar / T Handle

               - Weight : 0.81 lbs / 375 g

Toggle clamp Feature:

1.fast and flexible loading and clamping with stable clamping force

2.safe and convenient to operate ,

3.high effciency

4.greatly reducing operation time for processing, assembling,fixing

5.clamping all kinds of parts.

Application Field:

1.widely used in eletronics industry as the part for the winding machine.

2.widely used in rail vehicles industry as the fixture on the welding tire tool.

3.widely used in automobile industy aa the fixture and the location pin on the detect stamping fixtures, welding tire tool and detect tire tool.

Note: Our company manufactures fixture of different models.we can design and manufacture the fixtures according to different reauirements in size and type from the toggle clamp customers
