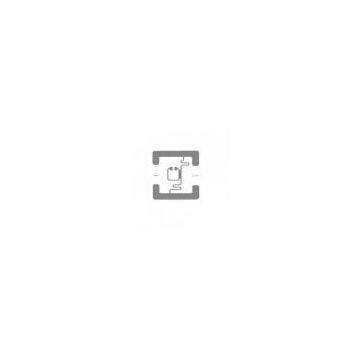

UHF Inlay AZ 9634 Dry Inlay / Wet Inlay Alien H3 Chip

Delivery Time:3-10 working days

Procut Name:            UHF Inlay AZ 9634 Dry Inlay / Wet Inlay Alien H3 Chip
Chip:                         Alien H3
Die Cut Size:             44mm*46mm


Alien Model Features

          Higgs-3

Meets EPCglobal™  Gen2 (V 1.2.0) as well as  ISO/IEC 18000-6C 800-Bits of Nonvolatile Memory 96-EPC Bits, extensible to 496 Bits 512 User Bits 64 Bit Unique TID 32 Bit Access and Kill Passwords Pre-Programmed with a unique, unalterable 64-bit serial number User Memory can be Block Perma-Locked as well as read password protected in 64 Bit Blocks Supports all Mandatory and Optional Commands including Item Level Commands

Higgs™ 4

Higgs™ 4 is a highly integrated single chip UHF RFID Tag IC. The chip conforms to the EPCglobal Class 1 Gen 2 specifications and provides state-of-the-art performance for a broad range of UHF RFID tagging applications.

Meets EPCglobal Gen2 (V 1.2.0) as well as ISO/IEC 18000-6C Worldwide operation in the RFID UHF bands (860-960 MHz) 512-Bits of Memory 128-EPC Bits 128 User Bits 64 Bit Unique TID 32 Bit Access and 32 bit Kill Passwords Pre-Programmed with a unique, unalterable 64-bit serial number User Memory can be Block Perma-Locked as well as read password protected in 32 Bit Blocks Supports all Mandatory and Optional Commands including Item Level Commands High speed programming using Block Write 30 tags per second for the 96-bit EPC number Low power operation for both read and program Exceptional operating range, up to 11m with appropriate antenna
