Home > Packaging & Printing > Packing Machinery > Filling Machine > TS-DDP Electric Adjust Blade Type Slitter Scorer 106

TS-DDP Electric Adjust Blade Type Slitter Scorer 106

Name: TS-DDP Electric Adjust Blade Type Slitter Scorer 106
Brand: Eagles
SKU: 146864138
Availability: InStock

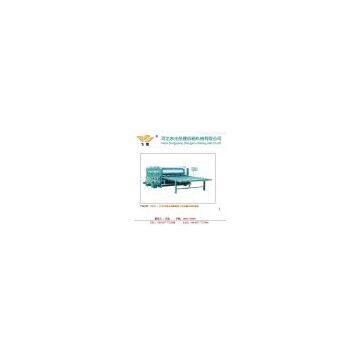

TS-DDP Electric Adjust Blade Type Slitter Scorer 106 thumbnail-1

TS-DDP Electric Adjust Blade Type Slitter Scorer 106 photo-1

US$ 10000 - 10000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Eagles

Place of Origin:

China

Model Number:

443011

Contact Supplier Request Quote Chat Now

Dongguang Zhangjian Packaging Machinery Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Eagles

Place of Origin China

Model Number 443011

TS-DDP Electric Adjust Blade Type Slitter Scorer

Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.

Features

1.Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.

2.Adopt electric adjust blade distance, pneumatic lock. Improve whole machine degree of automation, easy to operate and high precision, save time and labor to adjust.

3.Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

4.Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

5.Grinding Part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.

6.Adopt China famous brand or imported electric element, dependable performance.

Technical parameters

Model		2000	2300	2600
Machine dimension(mm)		26007501400	29007501400	32007501400
Power		3kw	4kw	4kw
Max slitting width	Inverse blade	1800mm	2100mm	2400mm
Max slitting width	Positive blade	1800mm	2100mm	2400mm
Min slitting width	Inverse blade	140mm	140mm	140mm
Min slitting width	Positive blade	140mm	140mm	140mm
Min slitting length		435mm	435mm	435mm
Min scoring width	Positive scoring	30mm	30mm	30mm
Min scoring width	Inverse scoring	80mm	80mm	80mm
Scoring height		0-10mm	0-10mm	0-10mm
Blade(mm)		φ2001221.2	φ2001221.2	φ2001221.2
Blade & Scoring Composed Type		Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring
