Die Cutting and Creasing Machine 611

Name: Die Cutting and Creasing Machine 611
Brand: Eagles
SKU: 146862916
Availability: InStock

Die Cutting and Creasing Machine 611 thumbnail-1

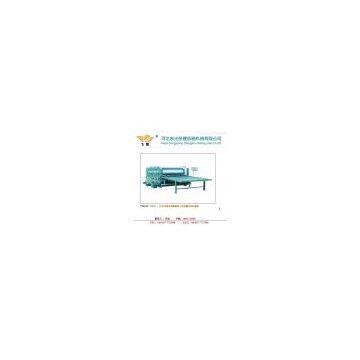

Die Cutting and Creasing Machine 611 photo-1

US$ 10000 - 10000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Eagles

Place of Origin:

China

Model Number:

561055

Contact Supplier Request Quote Chat Now

Dongguang Zhangjian Packaging Machinery Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Eagles

Place of Origin China

Model Number 561055

Die Cutting and Creasing Machine

Quangcheng serial die cutting & creasing machines are special equipments for die cuting and creasing. It can be used for a wide

Application:

Quangcheng serial die cutting & creasing machines are special equipments for die cuting and creasing. It can be used for a wide range of materials, such as cardboard, corrugated board, plastic and leather. It is applicable to the fields of printing, packaging, decoration class industries. Quancheng machines have been acceptable by the customers from China domestic and abroad due to its outstanding features, high quality and good service.

Function and characteristics:

<OL>

<LI>Sliding bearings are made of high-quality casting of alloy copper, thus to get resistance to abrasion, and shake reducing.

<LI>The flywheel with great torque and large pressure.

<LI>High strength due to one-piece casting by top-ranking material for the machine body.

<LI>Single plate electromagnetic clutch is sensitive and reliable.

<LI>With functions of single, continuous and opening dwell operation, dwell range is adjustable.

<LI>Operating altitude design is reasonable, crushing open angle is big.

<LI>Concentrated lubrication system ensures good lubrication, reduce wear.

<LI>Safety and protection system is reliable.</LI></OL>

Technical specifications

<TBODY>

<TR>

<TD>

Model</TD>

<TD>

Max creasing Area</TD>

<TD>

Working speed</TD>

<TD>

Max. rule

Length</TD>

<TD>

Motor power</TD>

<TD>

Weight</TD>

<TD>

Overall  Dimension

(L×W×H)</TD></TR>

<TR>

<TD>

PYQ401C</TD>

<TD>

750×520mm</TD>

<TD>

28±2(strokes/min)</TD>

<TD>

15m</TD>

<TD>

2.2kw</TD>

<TD>

2000kg</TD>

<TD>

1260×1350×1280mm</TD></TR>

<TR>

<TD>

PYQ203D</TD>

<TD>

930×670mm</TD>

<TD>

23±2(strokes/min)</TD>

<TD>

25m</TD>

<TD>

3.0kw</TD>

<TD>

3000kg</TD>

<TD>

1670×1670×1630mm</TD></TR>

<TR>

<TD>

ML1100</TD>

<TD>

1100×800mm</TD>

<TD>

20±2(strokes/min)</TD>

<TD>

32m</TD>

<TD>

4.0kw</TD>

<TD>

4500kg</TD>

<TD>

1900×1780×1700mm</TD></TR>

<TR>

<TD>

ML1200</TD>

<TD>

1200×8300mm</TD>

<TD>

20±2(strokes/min)</TD>

<TD>

35m</TD>

<TD>

4.0kw</TD>

<TD>

4800kg</TD>

<TD>

1920×2140×1920mm</TD></TR>

<TR>

<TD>

ML1300</TD>

<TD>

1300×920mm</TD>

<TD>

18±2(strokes/min)</TD>

<TD>

40m</TD>

<TD>

5.5kw</TD>

<TD>

6000kg</TD>

<TD>

2000×2140×2000mm</TD></TR>

<TR>

<TD>

ML1400</TD>

<TD>

1400×1000mm</TD>

<TD>

17±2(strokes/min)</TD>

<TD>

45m</TD>

<TD>

5.5kw</TD>

<TD>

6500kg</TD>

<TD>

2010×2400×1930mm</TD></TR>

<TR>

<TD>

ML1500</TD>

<TD>

1500×1050mm</TD>

<TD>

16±2(strokes/min)</TD>

<TD>

45m</TD>

<TD>

5.5kw</TD>

<TD>

7000kg</TD>

<TD>

2010×2400×1930mm</TD></TR>

<TR>

<TD>

ML1600</TD>

<TD>

1600×1250mm</TD>

<TD>

16±2(strokes/min)</TD>

<TD>

50m</TD>

<TD>

11kw</TD>

<TD>

11000kg</TD>

<TD>

2170×2560×2230mm</TD></TR>

<TR>

<TD>

ML1800</TD>

<TD>

1800×1300mm</TD>

<TD>

16±2(strokes/min)</TD>

<TD>

62m</TD>

<TD>

15kw</TD>

<TD>

13500kg</TD>

<TD>

2240×2800×2130mm</TD></TR></TBODY></TABLE>
