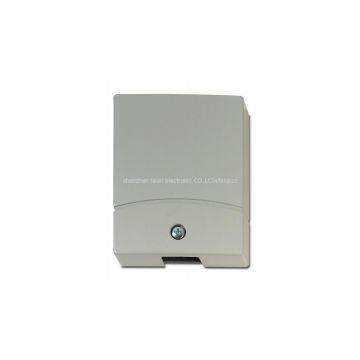

Vibration Detector, Seismic Detector for Atms (VV600/602PLUS)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Quad PIR & Microwave Outdoor Sensor Outdoor Motion Detector (EDS2000)
-
Alarm Host 10-Zone Control Panel (PA-728+)
-
Alarm Host 10-Zone Control Panel (PA-728+/646)
-
Alarm System, Alarm Control System (PA-728ULT/646)
-
Alarm Host, Alarm System (PA-738ULT)
-
Dual EMI and Rfi Motion Detector for Alarm System (PA-476+)
Product Details
| Brand Name | Vibration Detector, Seismic Detector for Atms | Place of Origin | China | |
| Model Number | VV600/602PLUS |
Product Description
Specifications:
Input power 9 to 15 VDC, 2 V pk-pk
Current consumption Nominal 8.6 mA
Alarm output Form A solid state relay, max series resistance 35 ohm
Alarm indication LED-indication screw no. 3
Sensitivity adjustment 5 steps of approx. 6 dB each
Test output Screw no. 4 for measuring ambient noise level
Detection range 3 to 14 m radius. See Installation Manual for planning Purposes
Tamper protection Temperature 84° C, drill shield, opening contact, pry-off Contact
Low voltage alarm 7.5 V
IP rating IP30
Operating temperature -20 to +55° C
Relative humidity 90% at 30° C
Dimensions (W x H x D) 81 x 101 x 28 mm
The VV600/602 Plus series seismic detectors are designed to detect attempts to break into vaults, safes, night deposit boxes, automatic teller machines (ATMs) and other reinforced physical areas such as data storage's and filing cabinets. The VV600 Plus Series is a next generation development based on proven high technology electronic processing with excellent secure detection without false alarms. Not only with a new look but also designed for the highest security with full-scale tamper protection and two possibilities of testing.
