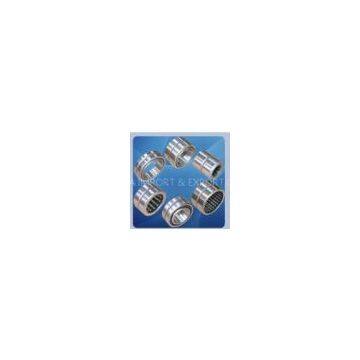

Needle Bearing001

Types of Designs:
This kind of bearing has multiple structural styles for the choice of customers, such as narrow & broad series, with or without inner races, cages, ribs or sealings. It can be designed according to the special structural requirements of customers as well.

Product Precision Accuracy:
Dimensional tolerance and geometrical accuracy is based on GB/T5801.
Mutual difference of needle roller diameter is 2μm, and the precision grade is G2 (ISO GB309).
The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly.

Bearing radial running clearance conforms to the value defined by 0 group of GB/T4604.
Special precision grade is based on GB/T307.1


Materials:
Material for needle roller is GCr15 bearing steel, quench-hardening HRC60---65.
Material for inner and outer races is GCr15 bearing steel, quench-hardening HRC61---65.
Material for cages is quality low-carbon steel or reinforced nylon.

Special Directions:
Bearing running clearance and inner-cutting roundness should be regulated according to different conditions.
Machine tools should be used for press-in fitting or thermal fitting of the bearing
Limited by plastic cages (suffixed with TN) and sealing-element material, operating temperature is -300C---+1000C.
For general-disposition design of bearings, refer to the relevant recommendation in the applied technology of rolling bearings.
