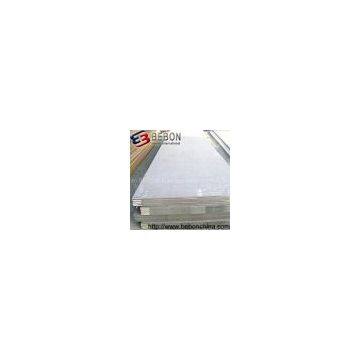

We offer EN10028 P235GH Boiler Pressure Vessel steel plate and sheet :
1.Chemical Composition:
C :≤0.16 Si:≤ 0.35 Mn:0.6-1.2 S :≤0.025 N:≤ 0.012 AL:≤ 0.02 Nb:≤ 0.02
P :≤0.025 Cr:≤0.30 Ni:≤0.30 Mo::≤ 0.08 Cu:≤ 0.30 V:≤ 0.02 Ti :≤ 0.03
2. Mechanical properties:
Tensile Strength σb(MPa) :
360-480 (thickness under 100mm); 350-480(thickness between 100-250mm)
Yield Strength σ0.2 :
≥235(thickness under 16mm);
≥225(thickness between 16-40 mm);
≥215(thickness between 40-60mm);
≥200 (thickness between 60-100mm);
≥185(thickness between 100-150mm);
≥170(thickness between 150-250mm)
Elongation δ5(%) : ≥ 24
Impact Energy (KV J) :
≥27(under -20 degree );
≥34(under 0 degree );
≥40(under 20 degree )
3. Application :
EN10028 P235GH steel plates is a kind of material for boiler and pressure vessel steel. EN10028 P235GH steel plates is characterised by a minimum yield strength of 170-230MPa and by good weldability,so P235GH steel is mainly used to for manufacturing boilers, pressure vessels and pipes transporting hot liquids.
