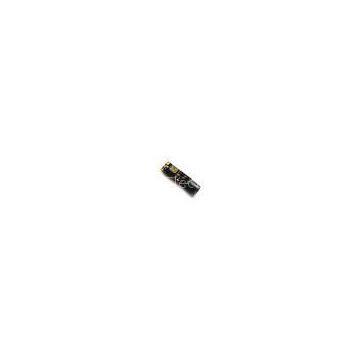

Micro Endoscope Camera board with 1/18-inch Lens and Measuring 4 x 12mm
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
1/3-inch Sony CCD Board Camera Module with 540TVL Horizontal Resolution and 12V DC Power Supply
-
Car Rear View Camera with Water Resistance and Resolution of 480TVL
-
High-resolution 480TVL Color CMOS Video Camera Module with Auto AE/Gain Control and 12V DC Voltage
-
1/3-inch Video Camera Module with OV7949 Image Sensor and 21mm Diameter
-
HD Car DVR with Easy Setup Mode and Motion Detection
-
Mini Video Camera Module with 480TVL and 0.01Lux Minimum Illumination,16mm Diameter
Product Details
| Brand Name | CCGE | Place of Origin | China | |
| Model Number | CCGE-2048A |
Product Description
Module size (D x L): Φ4 x 12mm
PCB size (L x W): 4 x 8mm
Image sensor: CMOS color OV6920 1/18 inches
Effective pixels: 320 x 240
Horizontal resolution: 240TVL
Sync system: inter-sync
S/N ratio: 42dB
AWB: switch control
Video signal: CVBS NTSC
Validity focal length: 5 to 100mm
Vision angle: 90°
Gamma attenuation: 0.45
Video output: 1Vp to p, 75 Ohms composit
Power supply: 3.3 to 5.0V/DC, 30mA
4Pin output: power, earth wire, video and AWB
Storage temperature: -30 to 60°C
Working temperature: -10 to 50°C</ul>
