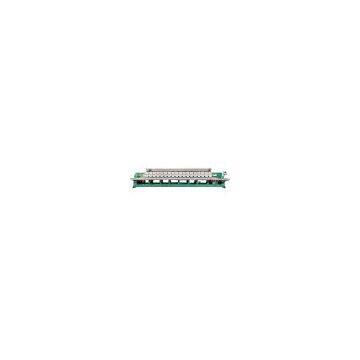

Flat Embroidery Machine(18 Heads)

Product Name:  Flat Embroidery Machine(18 Heads)

Model No:  LJ-918/618

Origin:  China

Packing:  Vacuum

Brand Name:  Lejia

Delivery Time:  30 days after receiving deposit

Minimum Order:  1 sets

Supply Ability:  300 sets/ month

Quality System Certification:  CE certificate and ISO9001:2008

Flat Embroidery machine Series

Used for:
LJ series of flat embroidery machines are designed and manufactured by our self, and they’re widely used for embroidering of fashion clothes, curtains, bed covers, toys, ornaments and crafts.

Main Feature:
Liquid crystal display (LCD): with high resolution display, it can monitor the embroidery design with dynamical digitals; meanwhile it can be easily operated and switch over between two languages, Chinese and English.
Memory format & capacity: it can read files in Tajima(DST), Barudan, ZSK, Binary system, Ternary system; and its max. memory capacity is 10 million stitches, and 99 patterns.
Function of designs rotation & scaling: designs can be revolved from 0-360 degrees, and also from left to right or otherwise; the scaling of designs reach vary from 50%-200%; and in order to meet different needs, it can be adjusted that weather to do the rotation first or not.
Editing & weaving of embroidery designs: it can edit the designs in memory, and also combine different designs to a new one from different directions, sizes and locations.
Function of repeated movement of embroidery: it refers to the normal repeat or partial repeat. Number of max movements is 9 from X-axis direction, and 9 from Y-axis direction, which makes 81 times of repeated movements of embroidery.
Function of satin stitch mending: to search the target satin stitches automatically, and it makes new designs after zooming based on certain requests.
Function of being able to get back to the start point or stop point: during practical operation, sometimes some heads fail to embroider due to thread break, this machine can restart embroidering from that failure point both for ordinary and combined designs.
Automatic mending: according to different requirement of clothes and designs, it can separately mend X-axis and Y-axis (0.1-1.00mm) or make it together.
Function of sudden power-off protection and restart, thread break detect, and auto thread trimmer (optional).

Main Spare Parts:
Daohao computerized system with BECS-322 three phase (without auto trimmer)/BECS-328(with auto trimmer), and other high grade computers such as BECS-C18/C88/216/266/316/366 can be assembled as per customers’ requests.
Main motor: servo motors (Panasonic or Daohao), or induction motor as per customers’ requests. Frame motor: all servo motors or stepping motors available;
Original Japanese rotary hook and bobbin case; original Italian Mega belts;
New type linear drive rail;
Auto trimmer(optional)
Specifications:
Needles: 4/69/12/15; heads: 1-50;
embroidery area: X-axis: 150-1100mm; Y-axis:300-1500mm;
