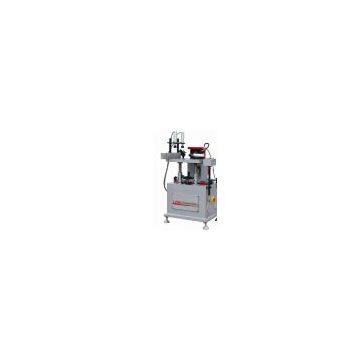

Auto End-milling Machine for Aluminum Door and Window LXD－200

Performance characteristic 1)Used for aluminum profile end processing, and suitable for various profiles. 2)Spindle with high accuracy, and cutting precision is high and reliable. 3) 35°~90° end milling are applied. 4)Worktable can adjust up and down, and convenient to adjust milling cutter 5)Cutter spindle is connected by coupling, and the cutter precision is not affected by motor’s accuracy. 6)Cutter adopt linear motion pair make working performance more stable. Technical parameter Power supply: 380V 50HZ Motor power: 1.5KW Motor rotational speed: 2800r /min Operation air pressure: 0.5-0.8MPa Main shaft diameter: ø 32mm Milling cutter diameter: ø115~ø200mm Worktable travel:0~80mm Locatingplate whirl angle: 0~55° Worktable size: 500×350mm Max processing hole size: 200×45×70mm Overall dimension:1060×800×1300mm(L×W×H) Machine net weight :200kg
