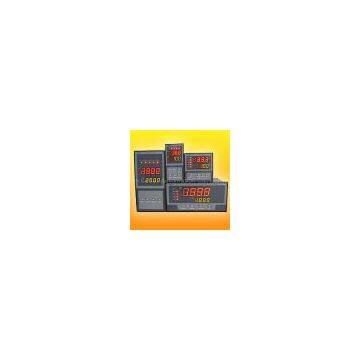

Kehao-PID temperature controller-KH103

Power Supply

85-240VAC,-15%,+10%/50-60HZ

Power Consumption

≤5W

Accuracy Class

0.2%FS

Working Environment

temperature: 0-50oC

humidity: 0-85%RH

Display Accuracy

0.1oC

Connection Method

Screw fixing

SN

Name

Description

1

Outer  Size

A:96X96mm, B.48x96mm, C.96X48mm, D.160X80MM, E.80X160mm,F,72X72mm, G.48x48mm

2.

Item No.

KH103-

3.

Control Method

1: PID Control  2: On-off control   3:manual operation

4.

Input Method

1: Thermocouple  2: RTD  3:Linear current  4:Linear voltage

5.

Output Method

Modular output

6.

Alarm Method

1: High limit alarm  2: Low limit alarm  3: higher limit alarm  4:lower limit alarm  5:Positive deviation  6: negative deviation ( max. 3 module output)

7.

Input type

1: K,S,E,J,T,B,N        2: PT100, CU50, CU100                                       3:0-5V, 1-5V           4:0-10mA  5:4-20mA

8.

Output type

R1/R2: Relay contact output module

W1:SCR non-contact output module

G:SSR driving voltage output module

K1:Single circuit SCR crossing zero trigger output module

K2:Double circuit SCR crossing zero trigger output module

I1:Poto electronic isolated current transmission output module

I2:Poto electronic isolated current control output module

S1:Poto electronic isolated RS485 communication interface

S2:Poto electronic isolated RS232 communication interface

U1/U2/U3: isolated 5V/12V/24VDC feed

C1/C2/C3: SCR single phrase/three phrase three wire/three phrase four wire shift trigger

9

Alarm type

R1/R2 :Relay contract output  W1:SCR non-contact output   K1/K2/C1/C2/C3: SCR trigger output(control thyristor)   G:SSR driving voltage output (to driving SSR)

10.

Communication type

I1, I2, S1, S2
