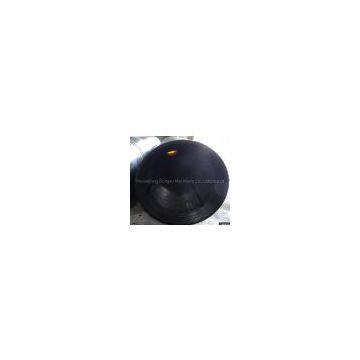

Description: The Die Collar is manufactured from high grade alloy and specially heat treated. The hardened cutting teeth (wickers) are machined on a shallow taper (approximately 3/4 inch per foot) to provide an excellent grip and positive engagement. Plain watertight wicker's are furnished as standard equipment. Fluted wickers are also available on request. Die Collars are available with plain, lipped, or mill type bottom, or with threaded bottom for attaching a standard lipped or over-sized guide.
Assembly and Operation:Assemble the Die Collar to the bottom of the fishing string. Run in the hole until reaching the fish. Apply minimum weight (less than one point) and rotate sufficiently to allow the wicker threads to become embedded in the exterior surface of the fish.
Standard Components: A standard or over-sized guide can be assembled to the bottom of the Die Collar, if it has been ordered with the optional lower thread. When the hole size is considerably larger than the diameter of the fish, there may be sufficient room for the Die Collar to pass alongside of the fish without engaging it. In this case, an over-sized guide can be used to assure fish engagement and to properly guide the fish into the Die Collar.
Standard Die Collars are supplied with right-hand threads. Left-hand threads are available on request at no extra charge.
