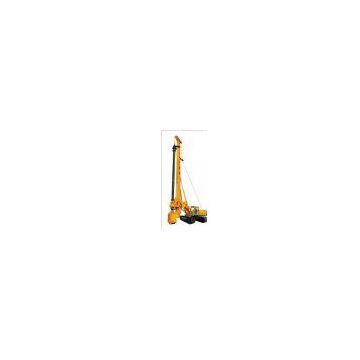

Rotary Drilling Rig
US$ 380 - 380
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
The world (well-known trademarks)
Place of Origin:
China
Model Number:
XR200
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
The world (well-known trademarks)
Place of Origin
China
Model Number
XR200
Rotary Drilling Rig
Rotary drilling rig is suitable for building into a hole in the foundation engineering construction machinery operations. Mainly for sand, clay, silty soil and other soil construction in the building, railway, bridge piles, diaphragm wall, foundation reinforcement and other foundation construction has been widely used. Our rotary drilling rig dedicated application of mature technology to produce the chassis, strong box-type boom, with superior stability; selection of imported EFI turbocharged engine, powerful, low noise, low emissions; the use of stable, reliable, high performance of the international brand hydraulic systems and hydraulic components, into the hole of good quality, safe, reliable, cost-effective.
Model
XR200
Engine
Model
CUMMINS M11-C330
Rated Power
KW / rpm
246/2100
Power head
Maximum output torque
kN · m
200
Speed
r / min
7 ~ 22
Maximum hole diameter
With casing
mm
Ф1500
Without casing
mm
Ф2000
Maximum drilling depth
m
60 (5), 48 (4)
Pressurized cylinder
Maximum pressure
KN
180
Maximum lifting force
KN
180
Stroke
m
5.0
Main Winch
Maximum lifting force
KN
180
Pulling speed
m / min
≥ 65
Auxiliary hoist
Maximum lifting force
KN
80
Pulling speed
m / min
≥ 60
Mast Rake
Sideways / forward / backward
± 8 ° / 5 ° / 15 °
Chassis
Maximum travel speed
KM / h
1.5
Gradeability
%
40
Min. Clearance
mm
468
Track width
mm
800
Distance between tracks
mm
3500 ~ 4400
Hydraulic System
Working pressure
Mpa
30
Quality of work machine
t
68
Dimensions
Working condition
mm
10200 × 4400 × 20850
Transportation Status
mm
15700 × 3500 × 3350
