Concrete Pumps
US$ 1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
The world (well-known trademarks)
Place of Origin:
China
Model Number:
HB56
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
The world (well-known trademarks)
Place of Origin
China
Model Number
HB56

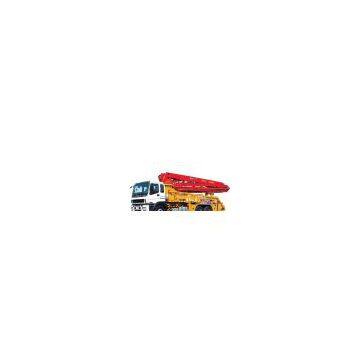

HB56 concrete pump fabric height up to 55.7 m, the optimal design of five RZ-type boom hinge point structure and organization, with operations more space, more flexible control, long life characteristics. Chassis used VOLVO FM440 104R B five-axle chassis with driving comfort, the appearance of luxury, high carrying capacity advantages. Pumping system with a diameter of 260 transport cylinder displacement of large central pumping system, the theoretical maximum displacement 163m3 / h, changing to a smaller frequency, low 21, high 14, the vulnerability of the high life, easy maintenance . Concrete piston can be automatically returned to replace. Patent "SN" valve buffer technology, can achieve soft commutation, the impact of a small pump. Pumping can be automatically converted to high voltage, pumping and electric displacement can be achieved without manual level control. Electrical system with PLC control, and with a color display, recording devices can be dynamically display various operating parameters. Energy-saving engine technology, fault diagnosis technology, the use of advanced technology, modern pump, which greatly enhance the pump's operating economics, reliability and security.
Driving conditions
Category
Project
Unit
Parameter
Chassis
Model
FM440
Manufacturer
VOLVO
Maximum speed
km / h
90
Gradeability
38%
Minimum turning diameter
m
27.4
Braking distance
m
≤ 10
Wheelbase
mm
1995 +5205 +1370 +1450
Track (front / rear)
mm
2028/1872
Approach / departure angle
.
18/11
Minimum ground clearance
mm
270
Tire Size
12.00R20
Engine
Model
D13
Output Power
kw / (r / min)
324/1400 ~ 1800
Maximum torque
N.m / (r / min)
2200/1050 ~ 1400
Displacement
l
12.8
Exhaust emission standards
State Ⅲ GB Ⅲ
Other
Dimensions (L × W × H)
mm
14885 × 2500 × 3990
Weight
kg
49750
Fuel tank capacity
l
410
100 km fuel consumption
l/100km
50
Job Status
Pumping system
Theoretical throughput (high / low)
m3 / h
100/163
Concrete pumping pressure (high / low)
Mpa
13 / 8
Theoretical pumping frequency (high / low)
Times / min
13/21
Maximum diameter of pumping concrete aggregate
40
Feeding height
1530
Booms
Pumping concrete slump range
12-23
Booms up to a high degree of
55.7
Booms up to the depth of
44
Booms radius of gyration
51.7
Booms rotation angle
364
Section angle to avoid stretching
96
Section angle to avoid stretching
180
Section angle to avoid stretching
180
Angle of the fourth quarter to avoid stretching
180
Section V angle to avoid stretching
260
Outrigger span
Total leg span
11250 ± 50
It is across the front legs
11400 ± 50
It is across the leg after
11300 ± 50
Other
Ingredients type
S valve
Lubrication
Automatic lubrication
Control
Manual / Remote
Water tank
700
Maximum pump pressure
2
