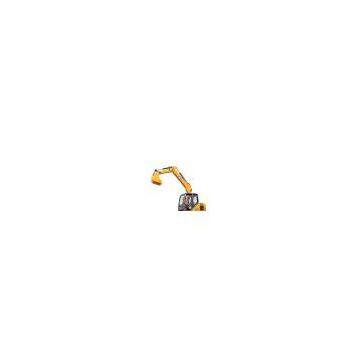

Excavator
Excavator digging bucket is above or below the machine bearing surface materials, and transport vehicles load or unload from stockyard of earthmoving machinery. Excavator is the construction of one of the most important models of construction machinery, buildings and plant are widely used in foundation excavation, excavation of soil material, cover strip mining sites, quarries, tunnels, underground factories and stockyards the loading operations, channel excavation, dredging canals and waterways, the replacement unit after the pouring, lifting, installation, piling, rammed earth and other operations. Long-term cooperation with Caterpillar, the world community to form a complete set of management operation. Self-development and production of international standard large, medium and small full range of hydraulic excavators. Using imported Isuzu engine, strong power, low fuel consumption and energy-saving, efficient operation to meet the requirements.
Model
XE260C
Bucket Capacity
Cubic meter
1.1
Standard bucket width
Millimeter
1,356
Operating Weight
Kilogram
24,670
Body size (transportation)
Length
Millimeter
10,160
Width
Millimeter
2,990
Full height
Millimeter
3,050
Minimum ground clearance
Millimeter
485
Engine
Model
CC-6BG1TRP
Total displacement
Liter
6.494
Rated output power
KW / rpm
125/2100
Digging performance
Maximum digging height
Millimeter
9,670
Maximum dumping height
Millimeter
6,795
Maximum digging depth
Millimeter
6,920
Maximum vertical digging depth
Millimeter
6,165
Maximum digging radius
Millimeter
10,270
Boom deflection angle: Left / Right
Degree
Minimum turning radius
Millimeter
3,870
Minimum turning radius of the rear
Millimeter
2,940
Bucket digging force
KN
163
Track type
Steel
Track width
Millimeter
600
Walking part
Track length
Millimeter
4,640
Wheel spacing
Millimeter
3,842
Track gauge
Millimeter
2,590
Speed ??(1 File / 2 File)
Km / h
5.5/3.5
Climbing ability
%
70
Swing speed
Rev / min
12.1
Blade
Blade (W)
Millimeter
Blade (H)
Millimeter
Enhance the distance (GL / down)
Millimeter
Hydraulic pump type
Variable pump × 2
Rotary motor type
Piston hydraulic motor
Driving motor type
Piston hydraulic motor
Fuel tank capacity
Liter
400
Hydraulic Tank Capacity
Liter
240
