Help CenterCore Drilling Bits for Marble
Related Products
Specifications
diamond core bit:
1.Arix core bit segment
2. drilling a hole takes 35 sec
3. over 200 holes
4. dry use

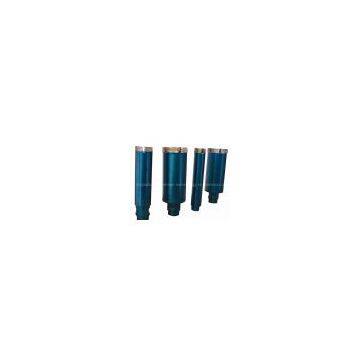

1-3/8" diamond core bit for drilling granite slab:
1) diameter: 35(1-3/8")
2) Dimension: 16*3.0*10
3) Fixed in: 90mm core bit shank with 5/8"-11 or M 14 screw thread
4) Machine: hand drill
5) Application: granite,hardstone
6) Tech: Matrix(diamond-arrayed)
7) Packing: Paper Case& customer require
8) All the pictures taken from the sample from our cutomers' order.
9) Recommend machine: 11A-13A, 650RPM.
Any other specification is available as follows:
|
Short Diamond Core Drill |
Unit: mm |
|||
|
Item No. |
Diameter |
Segment Width |
Segment Height |
Arbor & Length |
|
|
20mm |
3 |
10 |
Arbor:5/8”-11/M14 Length:90mm |
|
|
25mm |
3 |
10 |
|
|
|
30mm |
3 |
10 |
|
|
|
35mm |
3 |
10 |
|
|
|
40mm |
3 |
10 |
|
|
|
45mm |
3 |
10 |
|
|
|
50mm |
3.2 |
10 |
|
|
|
55mm |
3.2 |
10 |
|
|
|
60mm |
3.2 |
10 |
|
|
|
65mm |
3.2 |
10 |
|
|
|
70mm |
3.2 |
10 |
|
|
|
80mm |
3.2 |
10 |
|
|
|
90mm |
3.2 |
10 |
|
|
|
100mm |
3.6 |
10 |
|
|
|
120mm |
3.6 |
10 |
|
