Press Break/hydraulic Press Break/press Break Machine

Besco Machinery Industry Ltd
Press Break/hydraulic Press Break/press Break Machine thumbnail-1
Press Break/hydraulic Press Break/press Break Machine thumbnail-2
Press Break/hydraulic Press Break/press Break Machine thumbnail-3
Press Break/hydraulic Press Break/press Break Machine photo-1

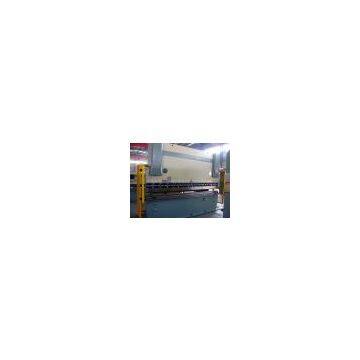

Press Break/hydraulic Press Break/press Break Machine photo-2
Press Break/hydraulic Press Break/press Break Machine photo-3
US$ 5000 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Besco
Place of Origin:
China
Model Number:
WC67Y
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Besco
Place of Origin China
Model Number WC67Y
etailed Product Description

1,press break/hydraulic press break/press break machine
2,CE certification
3,CNC control
4,Customerized acceptable

A press brake machine can be described by basic parameters, such as the press brake force or press brake tonnage and the press brake working length. Additional parameters include the press brake amplitude or press brake stroke, the distance between the press brake frame uprights or side housings, distance to the backgauge, and press brake work height. The press brake upper beam usually operates at a speed ranging from 1 to 15 mm/sec.
There are several types of press brakes as described by the means of applying force: mechanical press brake, pneumatic press brake, hydraulic press brake, and servo-electric press brake.
In a mechanical press brake, energy is added to a flywheel with an electric motor. A clutch engages the flywheel to power a crank mechanism that moves the ram vertically. Accuracy and speed are two advantages of the mechanical press brake.
Hydraulic press brakes operate by means of two synchronized hydraulic cylinders on the C-frames moving the upper beam. Servo-electric press brakes use a servo-motor to drive a ballscrew or belt drive to exert tonnage on the ram.
Pneumatic press brakes utilize air pressure to develop tonnage on the ram.
Until the 1950s, mechanical press brakes dominated the world market. The advent of better hydraulic press brakes and computer control press brakes have led to hydraulic press brake machines being the most popular.
Pneumatic and servo-electric press brake machines are typically used in lower tonnage applications. Hydraulic press brakes produce accurate high quality products are reliable, use little energy and are safer because, unlike flywheel-driven press brakes, the motion of the ram can be easily stopped at any time in response to a safety device i.e. a light curtain.
Features of press break/hydraulic press break/press break machine :
1,The press break/hydraulic press break/press break machine is steel welded structure;
2,The press break/hydraulic press break/press break machine eliminates stress by vibration.
3,The press break/hydraulic press break/press break machine has high mechanical strength, and exceptional rigidity.
4,The press break/hydraulic press break/press break machine uses hydraulic top-drive, steady and reliable.
5,The press break/hydraulic press break/press break machine has mechanical stop and steel torsion bar to maintain synchronization and high precision.
6,The press break/hydraulic press break/press break machine electric adjustment, manual fine adjustment, and digital display for backgauge distance and stroke of up ram.
7,Deflection compensation unit installed on the up die or on the down die if the operating pressure is bigger than 250T .
8. Hydraulic system of press break/hydraulic press break/press break machine:
- Adopt integrated hydraulic control system, more reliable
- Consist of motor, oil pump and valve groups
- Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed
- Complete working cycle can be realized through the control of hydraulic valve.
- The working pressure at the right side of the wall board can be adjusted by the remote adjustment valve
9. Protective fence and the safety interlock of press break/hydraulic press break/press break machine :
- Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are travel limit protection and foot pedestal mounted emergency off switch.



Parameters of press brake for sale
Model Pressure (KN) Work table length(mm) Pillar Distance Throat depth (mm) Stroke (mm) Max.open height(mm) Motor power (kw) Weight (kg)
63T/2500 630 2500 1900 250 120 360 5.5 4650
63T/3200 630 3200 2600 250 120 360 5.5 5400
80T/3200 800 3200 2600 250 120 380 7.5 6000
80T/4000 800 4000 3100 320 120 380 7.5 7500
100T/3200 1000 3200 2600 320 120 380 7.5 7000
100T/4000 1000 4000 3100 320 120 380 7.5 8000
160/3200 1600 3200 2600 320 200 450 11 10000
160T/4000 1600 4000 3200 320 200 450 11 11500
160T/6000 1600 6000 4820 320 200 450 11 15000
200T/3200 2000 3200 2600 320 200 500 11 13350
