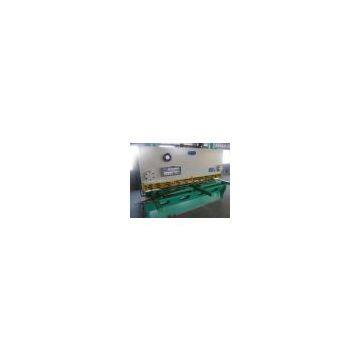

Sheet Metal Cutting Machine/sheet Metal Shearing Machine/sheet Metal Guillotine Shearing Machine
US$ 500 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Besco
Place of Origin:
China
Model Number:
Q11
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Motor Cutting Machine/mechanical Cutting Machine/electrical Cutting MachineUS$ 1000 - 1000MOQ: 1 Set -
Coil Slitting Line,cr Slitting Line,slitting Line for Aluminium StripUS$ 5000 - 5000MOQ: 1 Set
-
Cut to Length Line,coil Cutting Line,steel Coil Cut to Length LineUS$ 5000 - 5000MOQ: 1 Set
-
Metal Slitting Machine/metal Precision Slitting Machine/metal Slitting LineUS$ 5000 - 5000MOQ: 1 Set
-
CNC Hydraulic Shearing Machine/ Hydraulic Cutting MachineUS$ 5000 - 5000MOQ: 1 Set
Brand Name
Besco
Place of Origin
China
Model Number
Q11
Besco sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine Features:
1) The sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine employs hydraulically-driven guillotine beam, steel plate. Welded structure, and accumulator-based pullback cylinder with steady and reliableoperation.
2) Indicator-based adjustment of gap of blade is convenient and fast on the sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine .
3)The sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4) The sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine uses protection fence for safe operation.
5) Digital display device for size of back gauge and shearing times available on the sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine .
6)The sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine adopting the three point type leading rail oblique edge structure, that is tool post passes through 3 fulcrums on horizontal section to carry out restraint and former fulcrum is flexible fulcrum. Through the pre-pressing of the former fulcrum spring of the hydraulic guillotine plate shearing machine, we remove the gap of each kinematic pair. At the same time process for the rail surface of tool post, parallelism alignment error can carry out compensation. It is guaranteed the stability of blade gap of the guillotine shearing machine/shearing machine/shear machine; Among the 3 points of the the hydraulic guillotine plate shearing machine, upper fulcrum is adjustable partial fulcrum; Through partial regulation, tool post winds around the rear and lower fulcrum. Through lever effect, edge gap occurs change to reach the purpose of blade gap adjustment of the guillotine shearing machine/shearing machine/shear machine.
Parameters of sheet metal cutting machine/sheet metal shearing machine/sheet metal guillotine shearing machine
| Model | Max.shear Thickness | Max.shear Wideth | Storke Per Min | Backgaure Distance | Shear Angle | Throate Depth | Motor Power |
|
| 6*2500 | 6mm | 2500mm | 20-45 times | 750mm | 0.5-1.5 | 80mm | 7.5kw |
|
| 6*6000 | 6mm | 6000mm | 9-36 times | 750mm | 0.5-1.5 | 80mm | 7.5kw |
|
| 8*2500 | 8mm | 2500mm | 20-45 times | 750mm | 0.5-1.5 | 80mm | 7.5kw |
|
| 12*2500 | 12mm | 2500mm | 12-35 times | 1000mm | 0.5-2 | 80mm | 15kw |
|
| 16*2500 | 16mm | 2500mm | 16-40 time | 1000mm | 0.5-2.6 | 80mm | 22kw |
|
