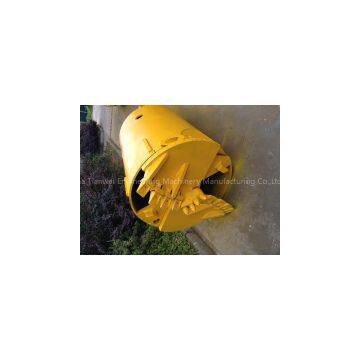

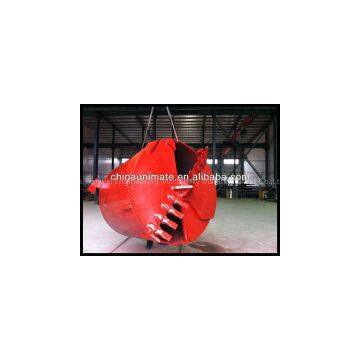

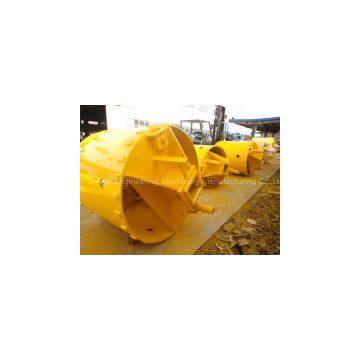

Clay drilling bucket, Soil Drilling Buckets
Features:
1- Cylindrical barrel & conical barrel (depends on customer demand)
2- Throughout ventilation hole
3- Hard facing strips around shell for wear protection an service life extending
4- Kelly box size as per customer demand
1.-- UNIMATE drilling buckets are mainly divided into three types:
1- Clay Drilling Buckets
2- Rock Drilling Buckets
3- Cleaning Buckets
1) Clay Drilling Buckets
There are two categories of clay drilling buckets:
1-Single Cut Clay Bucket
2- Double Cut Clay Bucket
Drilling Diameter Range:600~2500mm Shell Length:800~1200mm
Main Applications:
1- These buckets are suitable for drilling in clay, silt and loose to medium dense sand and gravel
2- Single cut buckets are recommended up to coarse gravel.
3- Double cut buckets are mainly used for bigger diameter uncased boreholes.
4- Single bottom buckets are used for clay laer and sticky formation.
2) Rock Drilling Buckets
There are two categories of rock drilling buckets:
1- Single Cut Rock Bucket
2- Double Cut Rock Bucket
Drilling Diameter Range:600~2500mm
Shell Length:800~1200mm
Main Applications:
1- Rock buckets are suitable for drilling in medium to weak rock and in very dense sand and gravel.
2- Single cut buckets are recommended up to coarse gravel
3- Double cut buckets are recommended for secant piles and uncased boreholes construction.
3) Cleaning Bucket
Cleaning Diameter Range:600~2500mm
Barrel Length:800~1500mm
Main Applications:
Cleaning bucket is used for cleaning the bottom of borehole.
4) Core Barrels
Core barrels are generally divided into two types:
1- Core Barrel with Bullet Bits (Applicable for strong rock up to 100MPa or Rock with deep cracks)
2- Core Barrel with Roller Bits (Applicable for very strong rock formations with compressive strength grater than 100MPa)
Cutting Diameter Range:600~2500mm
