Water Well Drilling Rig, Microdrilling Rig, Anchoring Machine

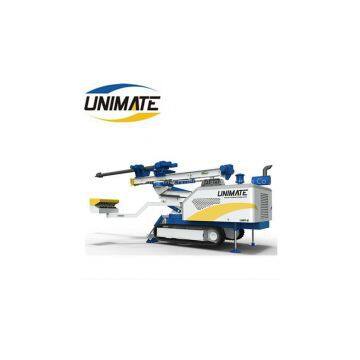

UMR-8 microdrilling rig is a newly developed multifunctional drill rig for versatile engineering applications e. G. Anchoring, micro piling, jet grouting etc. Having a complete range of adaptability in the field of foundation construction, tunnel construction, geological survey and slope protection construction.

1. Advanced Technical Performance
Unimate has many years of professional experience in the R&D of foundation construction equipment, the rig gained a number of patents and the overall quality has reached the international advanced level.

2. Reliable Quality
All key components adopt world famous brands, like Cummins engine, Sam hydraulic pump, cost-effective Hyde main valve, Eaton rotary head.

3. Reasonable Construction Design
Dual slewing ring system, telescopic boom and sliding mast enables the machine to realize flexiblemovement and multi-angle changes, applicable to a variety of working conditions.

4. Comfortable Operation System
High level operation interface and convenient operation handle. Wired and remote radio control system are both available on request...

5. Convenient Maintenance
Reasonable design, integrated configuration and regular hydraulic pipe makemaintenance easy and convenient.

FEATURES

Undercarriage
1. World famous brand Commins diesel enginewith aftersale service offices around the world makes maintenancemore convenient.

2. Uniqueoutrigger structure, reasonable gravity distribution and lower ground pressure make UMR-6 work with great stability.

3. Integrated electronic control system combines the engine and hydraulic pump control, the rig logical control and fault diagnosis system, which makes the engine automatically adjusts the speed to power and optimizeoperation mode. Even under extreme conditions, it alsocan output maximum torque stably to prevent engine flameout.
Working devices

1. The first slewing ring fitted on base machine enables drilling parallel to the tracks up to 90° .
The second kinematic allows to achieve an overall mast rotation equal to 180° . In order to increase the versatility of the drilling unit, UMR-6 is equipped with telescopic boomand sliding mast withvariable stroke.
UMR-6 can set the drilling directs in full range which are able to meet the construction requests in both open air and tunnel.

2. With Hydraulic clamp & breaker which can reduce the labor and enhance the labor efficiency.
Rotary head of large torque with two grades is equipped on UMR-6, which can realize various drilling processes.

3. Optional drilling tools:
Drilling rod
Casing tube
Drilling bit

Once drilling in the unstable formation, UMR-6 can drill the hole with the help of casing tube in high drilling efficiency and high quantity.
