Place of Origin
China
Model Number
BC9310
Certification:
GB Code:Exd Ⅱ CT6
DIP A20 TA,T6
GB Certificate:CNEx09.0190
Grade of Protection: IP66
Standard:GB3836.1-2000 GB3836.2-2000
Application:

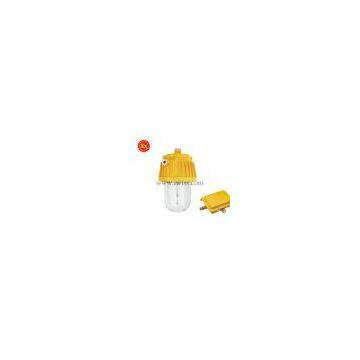

This product is applicable to fixed lighting in explosive and flammable places, such as the petrochemical devices, oil platforms, oil stations, oil pump stations, oil transmission station, etc.
1. Dangerous places in Zone 1, Zone 2 or Zone 20, Zone 21, Zone 22;
2. Grade IIA or IIB explosive gas environment or flammable dust environment.
Characteristics of Performance:
- BC9310A can be used for normal lighting, as well as for emergency cases. BC9310B is only applied for emergency lighting and is usually off. Both Type A and Type B can start the emergency lighting when the main power supply is cut off. They can also be connected with external switch, which is started when the power supply is off.
- Osram brand power supply and appliances, with stable performance.
- It uses dual-chamber explosion-proof design, making it safer in explosive and flammable places.
- Strong resistant to corrosion, water and dust, applicable to various harsh environments.
|
ORDERING REFERENCE
|
Light Source
|
Rated Wattage(W)
|
luminous flux(Lm)
|
Temperature Classification
|
Average Service Time
|
|
BC9310-J35
|
Metal halogen lamp(MH)
|
35
|
2500
|
T6
|
10,000h
|
|
BC9310-J70
|
Metal halogen lamp(MH)
|
70
|
5500
|
T6
|
10,000h
|
|
Power Supply
|
AC 220V / 50Hz
|
|
Charging Time
|
﹥12h
|
|
Lighting Time in Emergency
|
35W/80min
|
|
70W/40min
|
|
|
Ingress Protection
|
IP65
|
|
Anticorrosion Grade
|
WF2
|
|
Insulation Grade
|
Insulation GradeI
|
|
Spacing Height Ratio
|
2.5
|
|
Cable Diameter
|
Ø8 - Ø10
|
|
Dimension
|
Lamp 200 x 315mm
|
|
Explosion proof ballast box 340 x 220 x 88 mm
|
|
|
Weight
|
Lamp 5.2kg
|
|
Explosion proof ballast box 5.3kg
|
