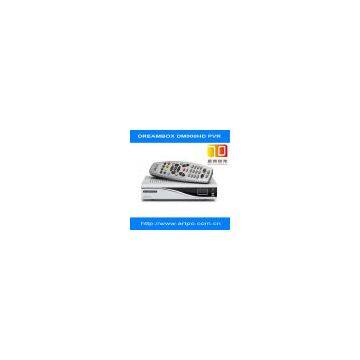

OEM DVB-S2 Dreambox Dm800 hd Dm800pro hd Dreambox Dm800hd Pvr-s for World Market
US$ 130 - 130
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DREAMBOX
Place of Origin:
China
Model Number:
dreambox dm800 hd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Stable Performance Original Dreambox Dm800 hd Dreambox DM800PRO M Version With CCcam FTA DVB-S2 Dvb-s/c/t,network Streaming,wifi EtcUS$ 130 - 130MOQ: 1 Set -
Dreambox Dm800 hd Dreambox Dm800 hd Pvr-s(dm800s)with BL82,GEMINI5.1,SIM2.01US$ 130 - 130MOQ: 1 Set
-
Manufacture Stable Performance the Newest Dreambox dm 800 hd With Black Remote Control Dreambox Dm800 hd Pvr-s dm 800sUS$ 130 - 130MOQ: 1 Set
-
Manufacture Stable Performance the Newest Dreambox dm 800 hd With Black Remote Control Dreambox Dm800 hd Pvr-c dm 800cUS$ 130 - 130MOQ: 1 Set
-
HOTTING~linux OS Set-top Box Dreambox Dm800 hd se Dreambox800se SSL78F,Gemini5.10 With Ferrari CardUS$ 200 - 200MOQ: 1 Set
Brand Name
DREAMBOX
Place of Origin
China
Model Number
dreambox dm800 hd
1. BL82,SIM Card2.01,GEMINI5.1
2. M Version,ALPS801A Tuner
3. FTA+CA+PATCH+USB
4. MPEG-4
5. OEM accepted
Artpo's DVB 800 hd Lastest:
1.Bootloader:82
2.Gemini:5.1
3.SIM:2.01
4.Heatsink,cpu fan,ALPS801A tuner
5.M version
6.OEM Accepted.
have a look to HighDefinition TV
10/100MBit compatible Ethernet Interface
DVI connector plug & play Tuner
brilliant OLED display
SATA for use either as internal HDD 2,5“ or eSATA - 300 MHz MIPS Processor
- Linux Operating System
- OLED - Display
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S, optional: DVB-C, DVB-T
- Tuner Module, Plug&Play
- 1 x Smartcard-Reader
- V.24/RS232 Interface
- 10/100Mbit Ethernet Interface
- 1 x Scart (RGB, FBAS or S-Video)
- DVI
- 2 x USB 2.0
- analog modem
- S/PDIF Interface for digital bit stream out (AC-3)
- 64 MByte Flash, 256 MByte RAM
- SATA
- for use either as internal SATA HDD 2,5“
- or to use for extern eSATA - unlimited channel lists for TV/Radio
- channel-change time < 1 second
- automatic service scan
- directly bouquet-lists
- EPG (electronic program guide)
- multiple LNB-Switching control (supports DiSEqC)
- OSD in many languages and skin-support
- Videotext Decoder
- extern 12V power supply
DM800 technical data
DBS-Tuner mit DVB-S2:
Frequency Range950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
analoge modem for Internet connection
SATA Interface:
- for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD USB
2 x USB 2.0 Host
LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
Power consumption:
< 15W at 12V
External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H):195 mm x 140 mm x 40 mm
Weight:1.8kg without HDD
2. M Version,ALPS801A Tuner
3. FTA+CA+PATCH+USB
4. MPEG-4
5. OEM accepted
Artpo's DVB 800 hd Lastest:
1.Bootloader:82
2.Gemini:5.1
3.SIM:2.01
4.Heatsink,cpu fan,ALPS801A tuner
5.M version
6.OEM Accepted.
have a look to HighDefinition TV
10/100MBit compatible Ethernet Interface
DVI connector plug & play Tuner
brilliant OLED display
SATA for use either as internal HDD 2,5“ or eSATA - 300 MHz MIPS Processor
- Linux Operating System
- OLED - Display
- MPEG-2 / H.264 Hardware decoding
- Tuner: DVB-S, optional: DVB-C, DVB-T
- Tuner Module, Plug&Play
- 1 x Smartcard-Reader
- V.24/RS232 Interface
- 10/100Mbit Ethernet Interface
- 1 x Scart (RGB, FBAS or S-Video)
- DVI
- 2 x USB 2.0
- analog modem
- S/PDIF Interface for digital bit stream out (AC-3)
- 64 MByte Flash, 256 MByte RAM
- SATA
- for use either as internal SATA HDD 2,5“
- or to use for extern eSATA - unlimited channel lists for TV/Radio
- channel-change time < 1 second
- automatic service scan
- directly bouquet-lists
- EPG (electronic program guide)
- multiple LNB-Switching control (supports DiSEqC)
- OSD in many languages and skin-support
- Videotext Decoder
- extern 12V power supply
DM800 technical data
DBS-Tuner mit DVB-S2:
Frequency Range950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
analoge modem for Internet connection
SATA Interface:
- for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD USB
2 x USB 2.0 Host
LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
Power consumption:
< 15W at 12V
External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H):195 mm x 140 mm x 40 mm
Weight:1.8kg without HDD
