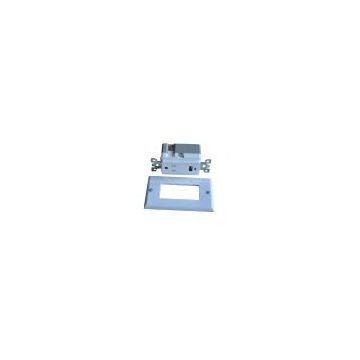

Help CenterSinoV-KSK-5V1A Inwall USB Power USB Socket
US$ 8 - 8
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
SinoV
Place of Origin:
China
Model Number:
SinoV-KSK-5V1A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
SinoV-AP-W500 150M Inwall Wireless AP Inwall APUS$ 45 - 45MOQ: 10 Pieces -
SinoV-S500 GSM GOIP Gateway GOIP4 GOP8US$ 390 - 600MOQ: 1 Pole
-
SinoV-WD-12 Wifi Display Dongle Support Mirracast Airplay Ezcast DLANUS$ 24 - 24MOQ: 10 Sets
-
1GB DDR3 Banana PI Single-board Computer Better Than Rasbperry pi and CubieboardUS$ 30 - 30MOQ: 10 Sets
-
Banana pi BPI-M1+ Open Source Single Board ComputerUS$ 32 - 32MOQ: 1
Brand Name
SinoV
Place of Origin
China
Model Number
SinoV-KSK-5V1A
Products:
1. SCOPE
The purpose of the document is to specify the functional requirements of SinoV-KSK-5V1A USB power.
The SINOV-KSK-5V-A USB power for Hotel / MDU System Integrator to provide guests and roomers secure Internet access and USB power connection in their hotel room, guest room, living room and lobby.
2. INPUT CHARACTERISTICS
2.1 Input Voltage:
Nominal Voltage:~100-240V
Variation Range:~90-265V
2.2 Input Frequency:
Nominal Frequency:50/60Hz
Variation Frequency:47-63Hz
2.3 Input Current:
0.45 Arms max At any input voltage and rated, DC output rated load
2.4 Inrush Current:
80Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.
2.5 Ac Leakage Current:
0.25mA Max At 240Vac input.
3. output characteristics:
3.1 output characteristics
|
Voltage
|
Voltage Min
|
Rated load
|
Max load
|
Output Power
|
|
5V
|
0.5W
|
6W
|
8W
|
6W
|
3.2 load characteristic,Adjusted rate
|
Voltage
|
Voltage Max
|
Rated load
|
Line Regulation
|
Load Regulation
|
|
5.1-5.25V
|
5.25
|
5V
|
3%
|
5%
|
3.3 Ripple And Noise:
|
The ripple and noise are as follows when measure with Max. Bandwidth of 25MHz and Parallel 50V/47uF,crossed connected at testing point.
|
|
|
|
Voltage
|
Ripple And Noise(Max.)
|
|
|
5.15V
|
200MV
|
3.4Turn On Delay Time:
2 second Max. At 220Vac input and output Max. Load
3.5 Rise Time
40mS Max. At 2205Vac input and output Max. Load
3.6 Hold Up Time:
5mS Min. At 115Vac input and output Max. Load.
3.7 Efficiency:
65%Min.At 220 Vac input and output Max. Load.
65%Min.At 240Vac input and output Max. Load.
4. PROTECTION REQUIREMENT:
4.1Short Circuit Protection:
The power supply will be auto recovered when output less 0.2A
4.2 Over current Protection:
The power supply will be auto recovered when over current faults
5. LED function
Green color when nomr working,Red color when charge,colol change to green when fully charged,trun RED when check current 100ma (20%)
6. ENVIRONMENTAL REQUIREMET:
6.1 Operating Temperature
0℃~ -40℃, Full load Normal operation.
0℃to40℃,Full load Normal operation.
6.2 Storage Temperature:-20℃to85℃, With package.
6.3 Relative Humidity:
5%(0℃)~90%(40℃)RH,72Hrs,Full load Normal operating.
6.4 Vibration:
1,Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm 9~200Hz,Acceleration 5m/s2
