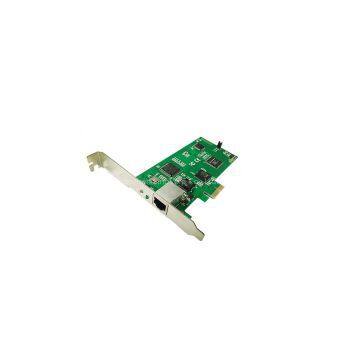

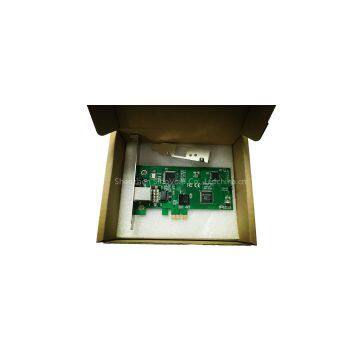

Help Center1 E1single Port Pci-e Asterisk Card All Driver as Digium
Related Products
-
SinoV-TE420E 4 E1 Pci-e Asterisk Card All Driver as DigiumUS$ 400 - 400MOQ: 1 Piece -
SinoV-TE420P 4 E1 Pci Asterisk Card All Driver as DigiumUS$ 350 - 350MOQ: 1 Pole
-
SinoV-TE230P 2 E1 Pci Asterisk Card All Driver as Digium With 2U ClassUS$ 400 - 400MOQ: 1 Piece
-
SinoV-TE430P 4 E1 Pci Asterisk Card All Driver as Digium With 2U ClassUS$ 450 - 450MOQ: 1 Pole
-
SinoV-GSM400E 4 Gsm GOIP Pci-e Asterisk Card for Voip IppbxUS$ 400 - 400MOQ: 1 Pole
The SinoV-TE120E is a with 1 ports, selectable E1 (32-channel) or T1 (24-channel) card that supports all the functionality of the Digium quad T1/E1 card. This card supports both voice and data modes on its single span. For example, the card can support 12 channels dedicated to voice and 12 to data while passing all traffic through to the Asterisk PBX, which reliably routes the channels to their designated locations. This eliminates the need for an external router.
By utilizing our TDMoE technology, an exclusive Digium process, one can easily connect multiple PCs equipped with the card and achieve voice quality on par with single PBX implementations. Scalability for this product is derived from adding multiple cards to each individual PC. Add addition cards as you need them for your expanding applications.
The card supports industry standard telephony and data protocols, including both RBS and Primary Rate ISDN (PRI) protocol families for voice and PPP, Cisco HDLC, and Frame Relay data modes. The board drives both line-side and trunk-side interfaces, including call features.
The card is a compact and powerful interface supporting voice and data transmission over T1, E1, and Primary Rate ISDN (PRI) connections. A low profile, half-length PCI form factor allows this device to fit within a 2U rackmount case or equivalent chassis, offer excellent density for call center, service provider, and other space-sensitive applications.
Of course, the asterisk card is fully supported by Digium open source Asterisk PBX software. Used in conjunction with Asterisk, the card offers the power to create a seamless network, interconnecting PSTN with the emerging Voice-over IP technologies. The card can be used to deliver a wide range of PBX and IVR services to the network or handset including Three-Way Calling, Call Conferencing,Voicemail ,and VoIP Gateways.
Interfaces:
- 1X E1/T1 interfaces ( E1/T1 selectable)
-PCI-E interface
Features:
One PRI port 30 channels
Hardware DTMF detection
Conference Bridge
PCM bus connectors (PCM30, PCM64, PCM128)
1 dual-color LEDs (layer 1 state indicators)
Active channel switching (across multiple cards over the external PCM bus)
PRI ISDN protocol stack
Applications:
ISDN PRI PBX
ISDN least cost router
Voice over IP PRI gateways
VoIP integration of ISDN equipment
PBX to PBX trunking
IVR
Data Modes:
Cisco HDLC
HDLC
PPP
Multilink PPP
Frame Relay
Voice Modes:
-EuroISDN
-AT&R 4ESS
-Lucent 5E
-National ISDN2
