SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx

SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx thumbnail-1
SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx thumbnail-2
SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx thumbnail-3
SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx photo-1
SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx photo-2

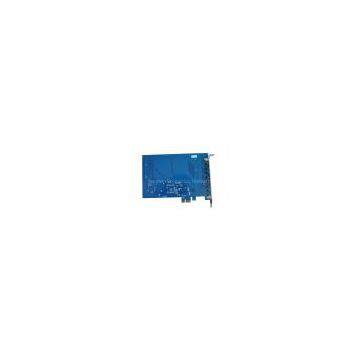

SinoV-TDM400E 4 Fxs/fxo Pci-e Asterisk Card for Voip Ippbx photo-3
US$ 120 - 120 MOQ: 1 Pole
Key Specifications
Get Latest Price
Brand Name:
SinoV
Place of Origin:
China
Model Number:
SinoV-TDM400E
Contact Supplier Request Quote Chat Now
Shenzhen SinoVoip Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SinoV
Place of Origin China
Model Number SinoV-TDM400E
SINOV-TDM400E_A is a new generation analog card with interchangeable FXS_100  and FXO_100 modules. It can eliminate the requirement for separate channel banks or access gateways.
The SINOV-400E contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to FXO_100 or FXS_100 modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
SINOV-TDM400E_A works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Main Features:

1 High security: It adopt tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.

3 World Wide Usable: Configurable line interface to meet global telephone line interface requirements.

4 The PCI plug is based on PCI Express 1X. User could choose any of combinations of FXO_100 or FXS_100 modules according to customer’s requirements.

5 32 bit bus master DMA data exchanges across PCI Express interface at 250Mbytes/sec for minimum host processor intervention.

6 The high stability firmware is exported / imported with DMA data exchange, so it accelerated and reduced CPU load greatly. Under the environment of the same hardware, CPU rate of utilization is equal to CPU rate of utilization of using 4 port analog card.

7 It supports all the functions of Asterisk PBX systems needed.

8 Easy to install: Both software and hardware compatible with Digium asterisk card

9 Exchangeable with Digium modules: It is mixable with X100M/S100M of Digium

10 Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabing users finger effectively.

11 For 4U chassis.

New function:
12   Easy to install , using way is same as DIGIUM Asterisk card
14   If use Trixbox/Elastix/Freeiris2 IPPBX software, it can automatic recognition our cards, don’t need to install any drivers.

Product Spotlight

SinoV-TDM400E_A is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 4 ports.
·  Adjustable Interrupt Routing Design
·  Interrupts Frequency Adjustment
·  Up to 4 Simultaneous PSTN Calls (Per PCI Slot)
·  Compatible with All Commercially Available Motherboards
·  3-Month “No Question Asked” Return Policy
·  Lifetime Warranty

Target Applications

·  Channel Bank Replacement / Alternative
·  Small Office Home Office (SOHO) applications
·  Small and Medium Business (SMB) applications
·  Gateway Termination to analog telephones/lines

Services and Features

·  Caller ID and Call Waiting Caller ID
·  ADSI Telephones
·  Loopstart Signaling Support

Technical Specifications

·  Up to 4 ports through a combination of FXS_100 and FXO_100 modules
·  Full-length analog card
·  Up to 1 quad FXS or FXO modules
·  RJ45 connector
·  32-bit 33MHz PCI-E and fully PCI-E compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
·  32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
·  Autosense compatibility with 5 V and 3.3 V PCI busses compatible
·  Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
·  Operation temperature: 0°C to 50 °C
·  Storage temperature: -40°C to 125°C

Operating Systems

·  Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

·  800-Mhz Pentium III
·  128MB RAM
·  Available PCI Slot

Size and Weight

  Size(L*W*H):  214*105*12MM

  Wight: 242g

------------------------------------------------------------------------------------------------

We are specialized in development and manufacture of POE and VoIP Products: IP Phone, IAD, IP PBX, GSM GATEWAY, GSM IPPBX and Asterisk card products. We have our own technological R & D team, with nearly a 6000 square meters modern factory, welcome to visit our factory, wish to establish business relationship with you. We can customize and develop products according to the demand of customers. OEM&ODM are both welcomed
