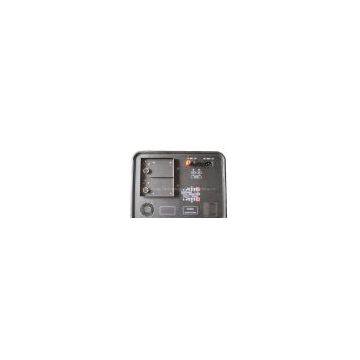

Military Battery Charger CH0004

Military Battery Charger CH0004

Part No: CH0004
NSN :6130-01-559-0124
DC Input Range: 12 to 36 VDC, MIL-STD 1275
AC Input Range: 115-230 VAC,50 to 60 Hz
Charge Rate: 1.0 Amp per String(BB-390 / 590 Batteries )
1.1 Amps per String(BB-2590 / UBI-2590 Batteries)
LED Indicators:Battery Type,Charging, Discharge, 90% Charged
Size: 14 L x 12 W x 6 D (35.56 x 30.48 x 15.24 cm)
Weight: 12 lbs. (5.44 Kg) without batteries
Storage Altitude :27,000 ft (8,229.6 m)
Operating Altitude :55,000 ft (16,764 m)
Humidity :95% relative
Accessories :Included AC and DC Cables
Allows operation from nearly any AC or DC power
source likely to be encountered worldwide.
Any combination of the following batteries can be recharged:
BB-390/U -Nickel Cadmium (NiCd)
BB-2590 / UBI-2590 (UBBL02) / MRC-2590 / UBBL09 / UBI-2590
SMBus (UBBL10)-Lithium-Ion (Li-ion)
Unattended Charging
- Smart charge modules that detect open or shorted
cells.If a defective cell is detected,the CH0004 will not
start charge cycle
- No programming or special instruction set to achieve
safe and complete recharge of battery
- In no event will a battery be overcharged using the
smart charging techniques of the CH0004
Conditioning Cycle
- Automatic discharge/recharge function included. The
conditioning cycle can be activated individually per battery
at operator's option
Recharges Each String of Cells
- To assure a positive recharge of the battery each
individual string of cells in the battery is recharged
independently
CE Mark Approval
- The CH0004 has approval for CE Mark.
