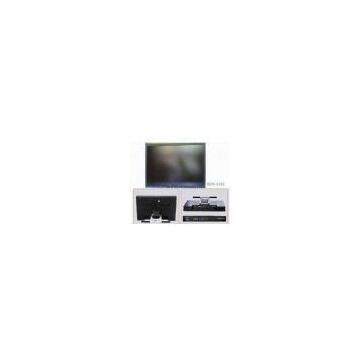

Help CenterHSPC-4209 42'' All-in-one Touchscreen PC
Related Products
-
HSPC-3209 32''All-in-one Touchscreen PCNegotiableMOQ: 1 Piece -
HSPC-2209 22'' All-in-one Touchscreen PCNegotiableMOQ: 1
-
HSPC-2019 20.1'' All-in-one Touchscreen PCNegotiableMOQ: 1 Set
-
HSPC-1909 19'' All-in-one Touchscreen PCNegotiableMOQ: 1 Piece
-
HSPC-1709 17'' All-in-one Touchscreen PCNegotiableMOQ: 1
Certification:CE,RoHS,ISO9001:2000
Application: Hengstar HSTW-4209 Series of Touchscreen Monitor is designed and developed for some industrial application, using ABS+PC external case with SS open frame structure inside housing, Hengstar Industrial Low-consumption Motherboard, Hengstar Patent Wide-temperature A/D board, high quality Resistive touchscreen and etc.
Features:
1. 42'' All-in-one Touchscreen PC
2. Modern appearance, with reference to Global No. 1 Brand ELO housing, and side OSD design,
3. ABS+PC environmental-protection material,
4. High-quality SECC metal casing is applied inside to reduce interference,
5. Widely applied for Medical, Communications, Financial, Hotel, POS and other top grade similar environment.
Specifications:
42'' All-in-one Touchscreen PC
|
LCD PANEL |
Size |
42'' |
|
Aspect Ratio |
16:9 |
|
|
Pixel Pitch |
0.4845mm(H) x0.4845 mm (V) mm |
|
|
Resolution |
1920*1080 |
|
|
View angle |
178degree(H)/178degree(V) |
|
|
Luminance |
600 nits |
|
|
Contrast ratio |
1000:1 |
|
|
Response time |
8ms |
|
|
Colors |
16.2M |
|
|
Video format |
1080P |
|
|
Port |
VGA/DVI/HDMI |
|
|
Horizontal frequency |
31KHZ-60KHZ |
|
|
Vertical frequency |
56~75HZ |
|
|
TOUCH SCREEN |
Technology |
IR Multi-touch |
|
Resolution |
4096*4096 |
|
|
Response time |
Below 15ms |
|
|
Light Transmission |
> 95% |
|
|
Luminance |
>350 nits |
|
|
Touch Media |
Finger, stylis, |
|
|
Durability |
More than 500, 000, 000 single touch |
|
|
MTBF |
>60, 000 hours |
|
|
Temperature |
Operation: -20°C ~ 70°C |
|
|
Storage: -30°C ~ 80°C |
||
|
Humidity |
0%~90% RH |
|
|
0%~95% RH |
||
|
SYSTEM |
CPU brand |
Intel |
|
M/B |
Low-consumption Industrial Board |
|
|
System Bus frequency |
533MHZ/800MHZ |
|
|
Memory |
1G |
|
|
I/O connector |
8 *USB 2.0，2 *COM，FINTEK71862FG Chipset，1* LPT，2*(RS232)，1 * RJ45， 9 pin of COM port support 12V or 5V power supply，GPIO，1*AV，AUDIO-OUT，AUDIO-MIC, support LVDS, TV-OUT, WIFI |
|
|
Hardware Detect |
ITE8712，CPU detect Fan, system fan, voltage, temperature, etc |
|
|
Netcard |
10~100~1000M adaptive network card |
|
|
Sound card |
