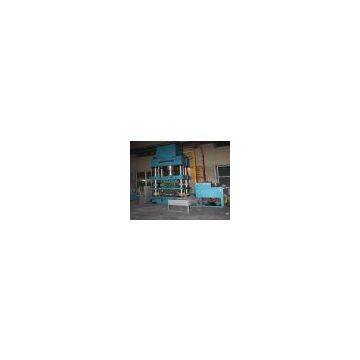

Help CenterPress Machine for Brake Lining
Related Products
1. Application: Suitable for the hot pressing process of all kinds of brake linings.
2. Performance Characteristics: Adopting the structure of four beams and pillars, PCL control. There also have four opening mould cylinders except pressing cylinder which works from single cylinder. With these, it can achieve the synchronous actions for pressing, exhausting and feeding of each layer’ mould. It has the following features: Easy operation, High efficiency and low labour intensity.
3. Technical Data:
Nominal pressure: 6300KN
Diameter of Main oil cylinder:φ560
Working stroke of slide block: 900mm(each layer)
Working pressure of system: 25Mpa
Operative working table: 1100mm*800mm
Working stroke of opening mould cylinder: 300mm/four
Working stroke of top mould cylinder: 550mm/two
Pressing speed of slider: upward:6-12mm/S backward:5-15mm/S
Speed of opening mould: 60mm/S Closing mould: 60mm/S (synchronous working of opening and closing)
Total power of motor: 26 KW
(Main motor on the top:15KW, Assistant motor in the bottom:11KW)
Overall dimensions:
4200(Right and Left) *2300(Back and Forth)*5900(Height)
