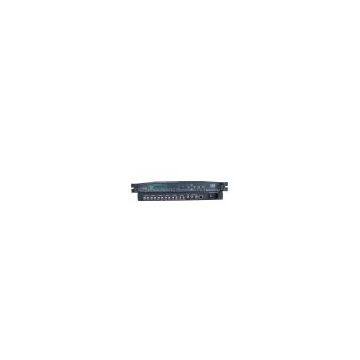

7-in-1 Satellite Receiver
- 6000 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Sochuang | Place of Origin | China | |
| Model Number | SC-2103 |
Product Description
Overview:
7-in-1 satellite receiver(IRD and multiplexer), is one of the main equipment of cable digital head-end, to receive 6 channel satellites’ signal(RF) and one ASI signal to multiplexer, and output two TS(transport stream)/ASI.
Features:
. Comply with DVB standard channel coding;
. Inside multiplexer;
. PCR Jitter <= 37ns;
. Local and remote management;
. LCD display in Chinese and English, easy and flexible to operate;
. High reliability design, stable operation;
Technical Specification:
|
Control |
NMS(Ethernet Port), Keyboard+LCD |
|
|
Demodulation Mode |
DVB-S/QPSK |
|
|
Symbol rate |
1~45Mbaud/s |
|
|
Error correction coding |
RS Coding 188/204 |
|
|
Input |
RF |
6 F-type |
|
ASI |
BNC |
|
|
IP data insert |
RJ-45 10/100 baseT Ethernet port |
|
|
output |
ASI |
MPTS, 2 BNC Port |
|
Output LEV |
>=115dBmV |
|
|
impedance |
75Ω |
|
|
Output Return Loss |
>=12 dB |
|
|
General Features |
Size |
44mm * 482 * 390mm |
|
Environment |
0 ~ 45(Operating);-20 ~ 80(Storage) |
|
Network Management:
P1: TS multiplexer-select program
P2: TS multiplexer-output setting
P3: TS multiplexer-NIT table
P4: TS multiplexer-edit PSI table
P5: TS multiplexer-PID passthrough
P6: TS multiplexer-PID filter
P7: Satellite parameter setting
P8: Tuner lock status monitor
P9: TS multiplexer-monitor
