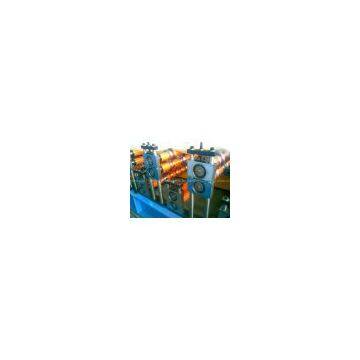

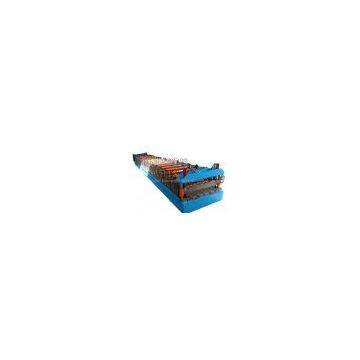

Help CenterDouble Tile Roll Forming Machine
Related Products
-
Corrugated Roll Forming MachineNegotiableMOQ: 1 Piece -
Glazed Steel Tile Roll Forming MachineNegotiableMOQ: 1 Piece
-
Corrugated Sheet Roll Forming MachineNegotiableMOQ: 1 Piece
-
Color Steel Sheet Roll Forming MachineNegotiableMOQ: 1 Set
-
820 Color Steel Tile Roll Forming MachineNegotiableMOQ: 1 Piece
Detailed Product Description
This type of sheet can be widely used in plant, storage and simple steel roof and wall.
weight:7.5T
Detailed Product Description
Double Sheet Machines We are specilized in manufacturing and designing color tile equipmentC&Z shaped.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---cutting---product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile thickness:0.4--1.0mm
2)inner tight decoiler
il inner diameter:450mm--700mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg
3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:15
4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.
5)control system
A.PLC
B.Coder
6)hydraulic system
A.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs
Terms:
1.Delivery:according to customers' requirement
2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
Double Sheet Machines We are specilized in manufacturing and designing color tile equipmentC&Z shaped.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---cutting---product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile thickness:0.4--1.0mm
2)inner tight decoiler
il inner diameter:450mm--700mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg
3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:15
4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.
5)control system
A.PLC
B.Coder
6)hydraulic system
A.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs
Terms:
1.Delivery:according to customers' requirement
2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
Detailed Product Description
Our products has feasures of
1. nice appearence
2.high efficiency
3.low noize and high quality
