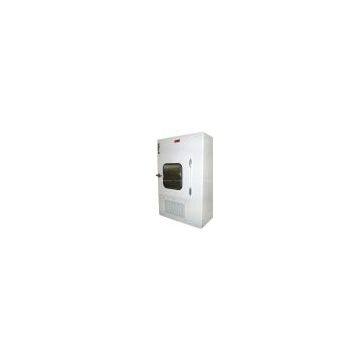

Pass box with air shower

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KLC		Place of Origin	China
Model Number	KLC-APB

Product Description

Pass-box with air shower is a kind of assistant equipment for clean room. Mainly be used in passing the small articles equipment between clean room and unclean room, different class and different pressure clean room. One side, it is affected for air brake and protect the high pressure discharged in the high class clean room. On the other hand, it can achieve the showering result during the passing for ensuring goods clean to enter the clean room and reduce the goods to bring the pollution extent. The showering time can according to the practical need within one minute adjustable. It can reach showering and save energy for the maximal limit.

Technology parameter

Ltem	KLC-APB600	KLC-APB750	KLC-APB800
External dimension(WDH)(mm)	9406001450	10907501500	11408001550
Internal dimension(WDH)(mm)	600600600	750750750	800800800
The dimension for prefilter(WDH)(mm)	57029017(1PC)	74529017(1PC)	79529017(1PC)
HEPA size(WHD)(mm)	610610120(1PC)	610610120(1PC)	610610120(1PC)
The power for fan	380V/50Hz/750W(1set)	380V/50Hz/750W(1set)	380V/50Hz/750W(1set)
Air velocity(m³/h)	1200	1200	1200
Noise(dB)	<78	<78	<78
Fan run(r/min)	2800	2800	2800
Nozzles	Stainless steel 38(>=4PCS)	Stainless steel 38(>=4PCS)	Stainless steel 38(>=4PCS)
The efficiency for HEPA filter	>99.99%@0.3um	>99.99%@0.3um	>99.99%@0.3um

passing the small articles equipment between clean room and unclean room, different class and different pressure clean room. One side, it is affected for air brake and protect the high pressure discharged in the high class clean room. On the other hand, it can achieve the showering result during the passing for ensuring goods clean to enter the clean room and reduce the goods to bring the pollution extent. The showering time can according to the practical need within one minute adjustable. It can reach showering and save energy for the maximal limit.
