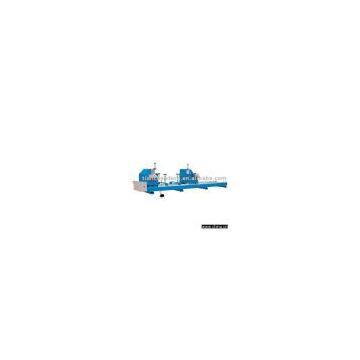

Sell Window Machine, Double Miter Saw LJZ2C-450X5000

Model No.:LJZ2C-450 x 5000
Product Origin:China
Brand Name:T&D
Price Terms:FOB, CIF, EXW
Payment Terms:T/T, irrevocable L/C at sight
Certification:ISO9001
Description:Features: Window machine used for u-pvc/aluminum profile cutting With Digtal display 1) Automatic 45 - 90o alternative cutting 2) One-time four pieces of profile cutting available (height of the profile should be less than 60mm) 3) Machine guide and head feeding adopted linear bearing system 4) Automatic machine head brake 5) Reasonable structure and high processing precision 6) Digital display the profile cutting length and quantity 7) With head fine adjusting device Specifications: 1) Power supply: 380V 60Hz 2) Three-phase, four-wire 3) Cutting motor power: 3kW (1.5kW x 2) 4) Cutting motor rotational speed: 3,300rpm 5) Operation air pressure: 0.5 - 0.8MPa 6) Air consumption: 30L/min 7) Max. cutting length: 5,000mm 8) Min. cutting length: 430mm 9) Cutting range (width x height): a) 230 x 90mm b) 20 x 105mm 10) Cutting angle: 45 and 90o 11) Cutter feeding speed: 0 - 3 m/min (step-less speed regulating) 12) Saw blade specifications: φ457 x 4 x φ25.4 Inner packing: Plastic cover, nylon cover Outer packing: Wooden case Carton dimensions (L x W x H): 4,900 x 1,800 x 2,000mm N.W.: 1,200kg G.W.: 1,350kg
