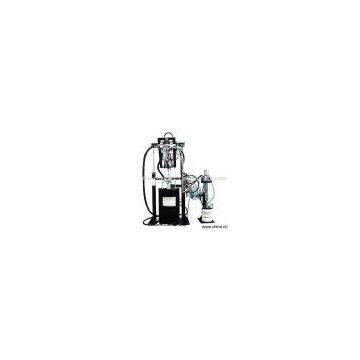

Sell Sealant - Spreading Machine (ST02)

Model No.:ST02
Product Origin:China
Brand Name:DECA
Price Terms:
Payment Terms:T/T, Irrevocable L/C at sight
Certification:ISO9001
Description:Main functions : 1) This equipment was designed by jointing the advanced technology from abroad and inside of China. It is an equipment used to spread two - component polysulphide glue or two - component silicone structure glue over the sealing edges of aluminum groove type hollow glass or curtain wall glass that are under the manufacture 2) A and B component glue pump, gelatinize gun and safety valve are all from GRACO Company of America. So it can ensure the credulity working 3) The special and convenient mixed device can ensure the high quality of the mixture 4) The equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency Main technical data: 1) Mixing ratio: 6: 1 - 14: 1 2) Max. amount of extruded glue: 4L/min 3) A pump: 55 gallons (200L) 4) B pump: 5 gallons (20L) 5) Glue air - pressure ratio: 50: 1 6) Max. air consumption: 0.8m³/min 7) Pressure of pneumatic system: 0.5 - 0.8MPa 8) Figure dimensions: 1,100 x 950 x 1,630mm 9) Total weight: 450kg
