Polyimid FPC

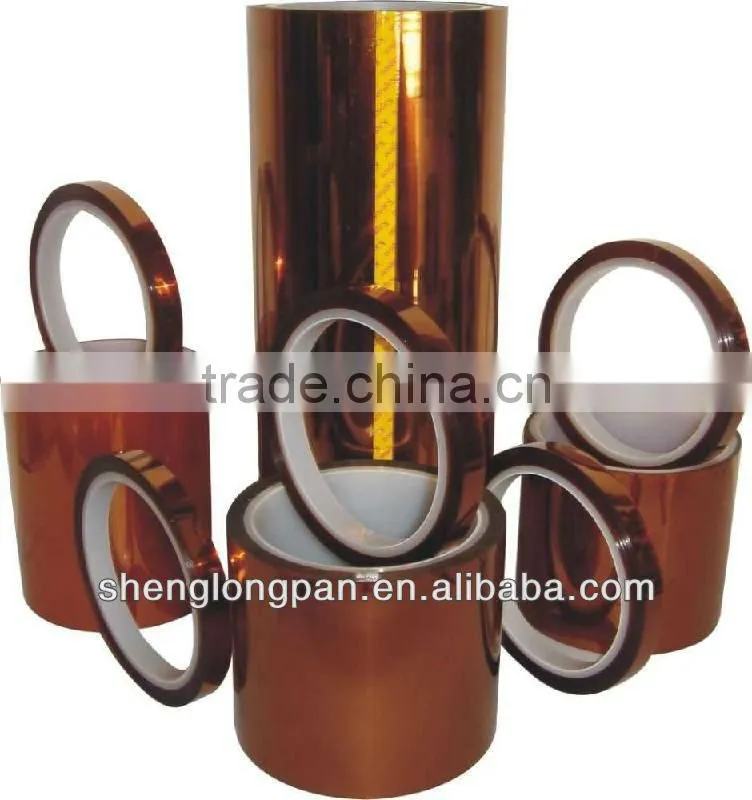

Polyimid FPC thumbnail-1
Polyimid FPC photo-1
US$ 20 - 60 MOQ: 20 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Polyimid FPC
Model Number:
Polyimid FPC
Contact Supplier Request Quote Chat Now
Shanghai Shenglongpan Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Polyimid FPC
Model Number Polyimid FPC

Specifications

Polyimid FPC
1.Color:Amber,Brown,Gold,Black,White,Clear
2.Application:Electronic&Electricals
3.Accept OEM,ODM
4.ISO,UL

Product  Name:Polyimid FPC

Polyimid FPC



Polyimide film is a good H grade insulating material. It is widely used for insulation purpose in electrical appliances which are used in special environment. To use the polyimide film means reducing volume and weight of the electrical appliances while retaining the same output or increase the capacity without increasing in frame size. It can also prolong the service life of the electrical appliances and increase their reliability. Its long-term working temperature is over 200 °C.

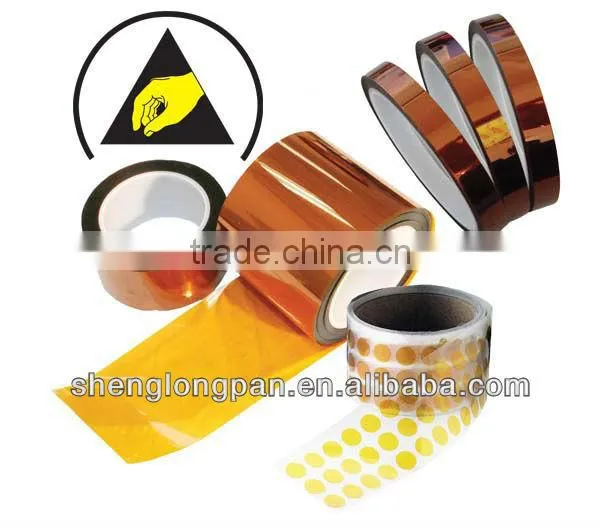

Polyimid FPCPolyimid FPC



The following properties of Polyimide Film ensure its good performance under extreme temperature or other conditions.

1.   Good property of insulation and mechanism

2.   Good temperature-resistant property, wide performance temperature range. It can be used under temperature from –60 °C to +250 °C for a long period and –269 °C to +400 °C for a short period without changing its electrical and mechanic properties.

3.   Good chemical stability. It resists most organic solvents.

4.   Excellent flame retardant property

5.   Good radian-resistant property
6.   Can be combined with many other materials. When combined with fluorine resin, its characters of wet and corrosion resistance are greatly improved.





Applications

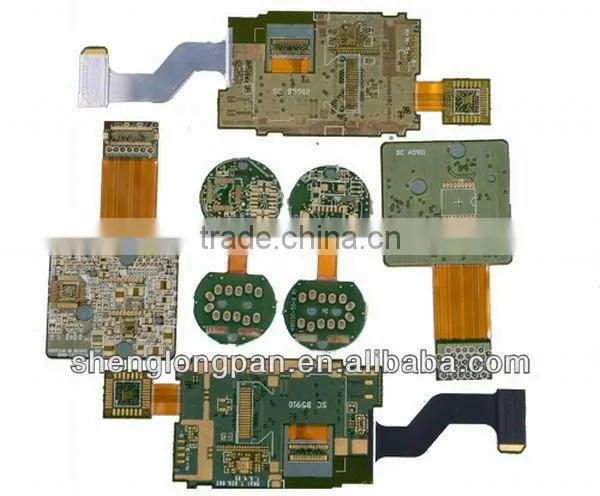

Flexible Printed Circuits
Insulation
Automotive
Bar Code Labels
Aerospace
Safety
Transportation

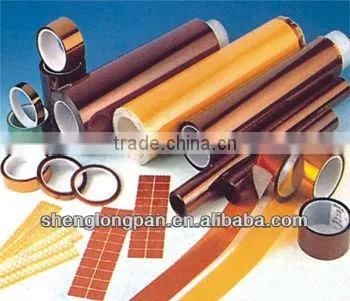

Polyimid FPCPolyimid FPCPolyimid FPC



Specifications

Measure tolerance

Film Type
Thickness Nominal micron(mil)*
Thickness Tolerance
Available Width
Nominal Unit Weight (g/m2)
Nominal Area Factor (m2/kg)
Min. (micron)
Max. (micron)
Min. (mm)
Max. (mm)
SLP250
25(1mil)
23
28
8
1000
35.7
28
SLP300
30
27
33
8
1000
43
23.3
SLP400
40
37
43
8
1000
57
17.5
SLP500
50(2mil)
47
53
8
1000
71.4
14
SLP750
75(3mil)
72
78
8
1000
107.5
9.3
SLP1000
100(4mil)
96
104
8
1000
143
7
SLP1250
125(5mil)
120
130
8
1000
178.5
5.6
SLP1500
150(6mil)
145
155
8
1000
212.8
4.7
SLP1750
175(7mil)
168
182
8
1000
250
4
* Special thickness is also available upon request



Mechanical and Electrical Properties

Item
Unit

Value for each thickness
Method
25 micron
50 micron
75 micron
100 micron
125 micron
Tensile Strength, Min
MD
MPa (kg/in)
139 (9)
139 (18)
139 (27)
139 (36)
139 (45)
JB2726-96
TD
120 (7.8)
120 (15.6)
120 (23.4)
120 (31.2)
120 (39)
Elongation, Min
%
40
40
40
40
40
JB2726-96
Dielectric Strength at 50 Hz, Min
Average
KV/mm
150
150
150
150
150
JB2726-96
Individual
100
100
100
100
100
Volume Resistance at 200 °C, Min
Ohm.m
1x 1010
1x 1010
1x 1010
1x 1010
1x 1010
JB2726-96
Dielectric Constant at 50Hz

3.1-3.9
3.1-3.9
3.1-3.9
3.1-3.9
3.1-3.9
JB2726-96
Dielectric Dissipation Factor 50Hz, Max

0.004
0.004
0.004
0.004
0.004
JB2726-96



Package and Supply

The film is packed in rolls.

Thickness 25 micron 50 micron 75 micron 100 micron 125 micron
Length* 2000 m (max) 750 m 500 m 330 m 300 m

* Special Length available upon request

Width Core Type Core Size
7-20mm Plastic 3 inch (76 mm)
20-1000mm Paper 3 inch (76 mm)

Polyimid FPCPolyimid FPCPolyimid FPCPolyimid FPC

Polyimid FPCPolyimid FPCPolyimid FPCPolyimid FPCPolyimid FPC
