NOMEX Aramid Cotton Blended Flame Retardant Fabric for Clothing

FOB Price

US$ 10 - 100 / Square Meter

100 Square Meters(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Supply Type	Make-to-Order	Material	Para Aramid / Meta Aramid
Type	Nomex Fabric	Pattern	Printed
Style	Twill	Width	Other, 43/44", 10mm-1500mm
Technics	Woven	Use	Garment, Industry, Military, Firefighter, Aerospace, Workwear, Underwear, Chemical, Petroleum, Metallurgy, Car, Tent
Feature	Flame Retardant, Bullet-Proof, Anti-Static, Chemical-Resistant, Heat-Insulation, Radiation-Resistant, Non-Conducting, Flame Retardant, Anti-Static, Heat-Insulation	Yarn Count	30S-40S
Density	75*47	Weight	150gsm, 180gsm, 210gsm, 260gsm
Certification	EN, UL, ASTM, Electric Arc Exposure Test, NFPA, LA	Model Number	NOMEX aramid cotton blended flame retardant fabric, 1313,1414

Product Description

Specifications

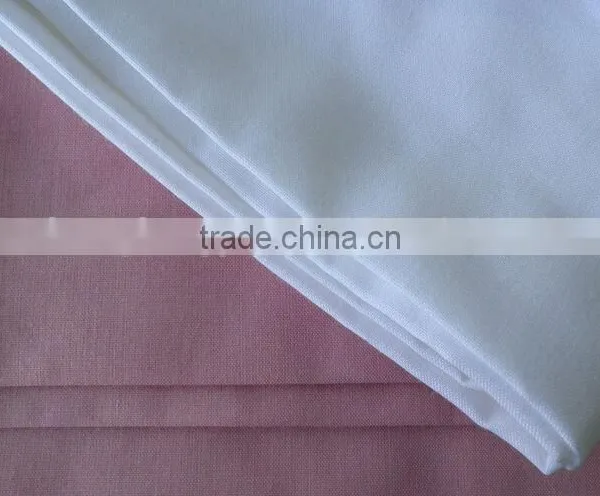

NOMEX aramid cotton blended flame retardant fabric
1.100% aramid,aramid&cotton,aramid&viscose,aramid&wool
2.High performance

Product Name:NOMEX aramid cotton blended flame retardant fabric for clothing

Aramid

Aramid usuallly has 2 model: Meta Aramid and Para Aramid.

Meta Aramid possess excellent heat stability, flame retardance, electric insulation, chemical stability, radiation resistance.

Para Aramid possess extremely high strength.

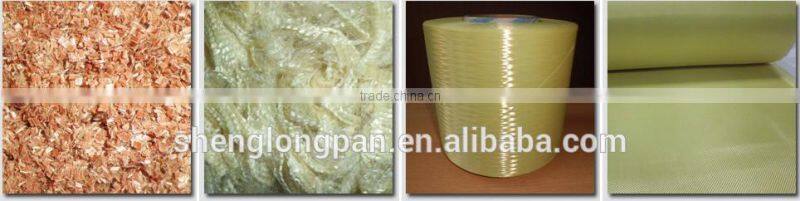

Meta Aramid Fiber

Color: Natural white

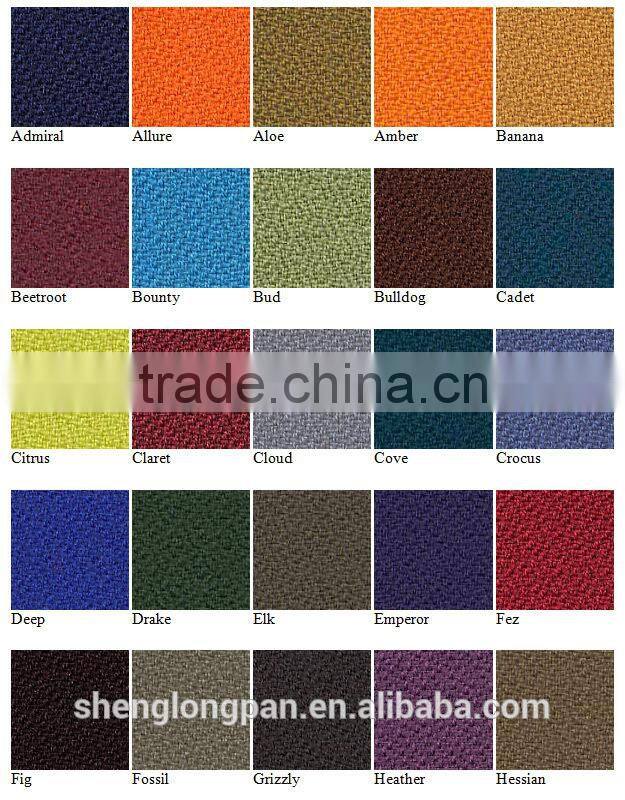

Solution dyed/Dope dyed

Meta aramid fiber can works normally at 206 C for long term. No ignition, no melting or dripping.

Application: Filtration fabric; sewing thread, felts, knitted fabrics. The solution dyed/dope dyed fiber usually be used in applications requiring superior colour fastness.

Producer-colored fibers are colored during the fiber-making process, while piece-dyed fabrics are colored after the fabric is woven together. Producer-colored fibers generally have better color stability to light and heat exposures. Piece-dyed products tend to come in a wider variety of shades

Meta Aramid Fabric ( woven fabric, knitted fabric, mesh )
-100% Meta aramid yarn and sewing thread
-95% Meta aramid + 5% Para aramid
-93% Meta aramid + 5% Para aramid + 2% Carbon fiber
-100% Para aramid
-100% Kermel
-50% Meta aramid + 50% Lenzing FR
-50% Kermel + 50% Lenzing FR
-Meta aramid + Wool
-Lenzing FR + Wool
Other blending ratio

Meta Aramid Clothing and Accessories

Clothing:Working Clothes

Application: Petrochemical industry
Electric power industry
Steel industry
Fire fighting
Aluminium industry
Metallurgical industry

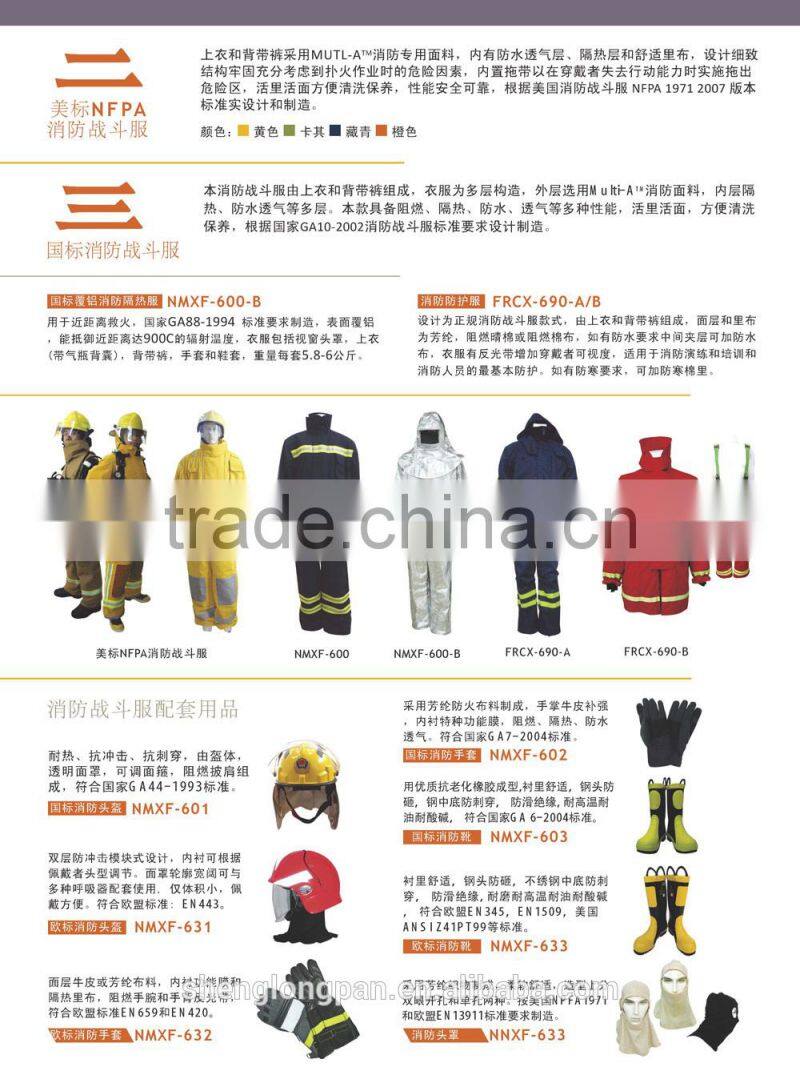

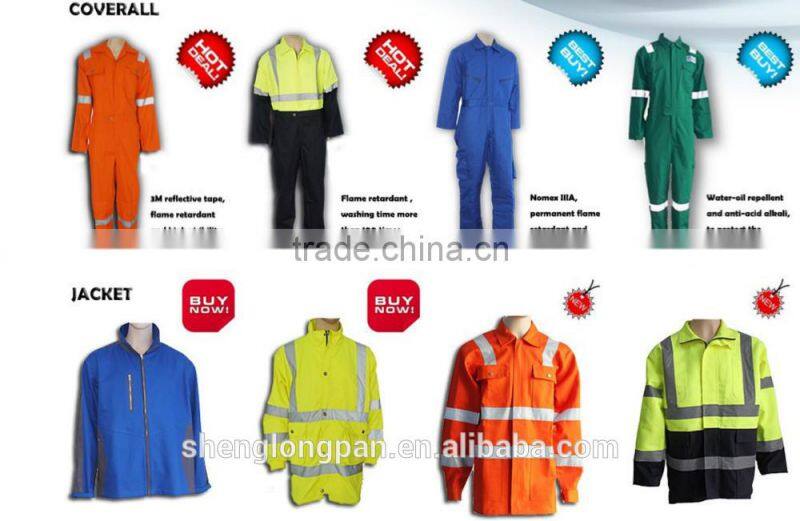

Coverall ( Overall )
Application: Flight coverall
SWAT coverall
Firefighter's coverall
Racing coverall

Hood ( Balaclava )
Application: Fire hood
Racer's hood
SWAT hood

Glove, Armlet
Application: Metallurgical industry
Glass industry
Automobile industry
Steel industry

Accessories: Zipper

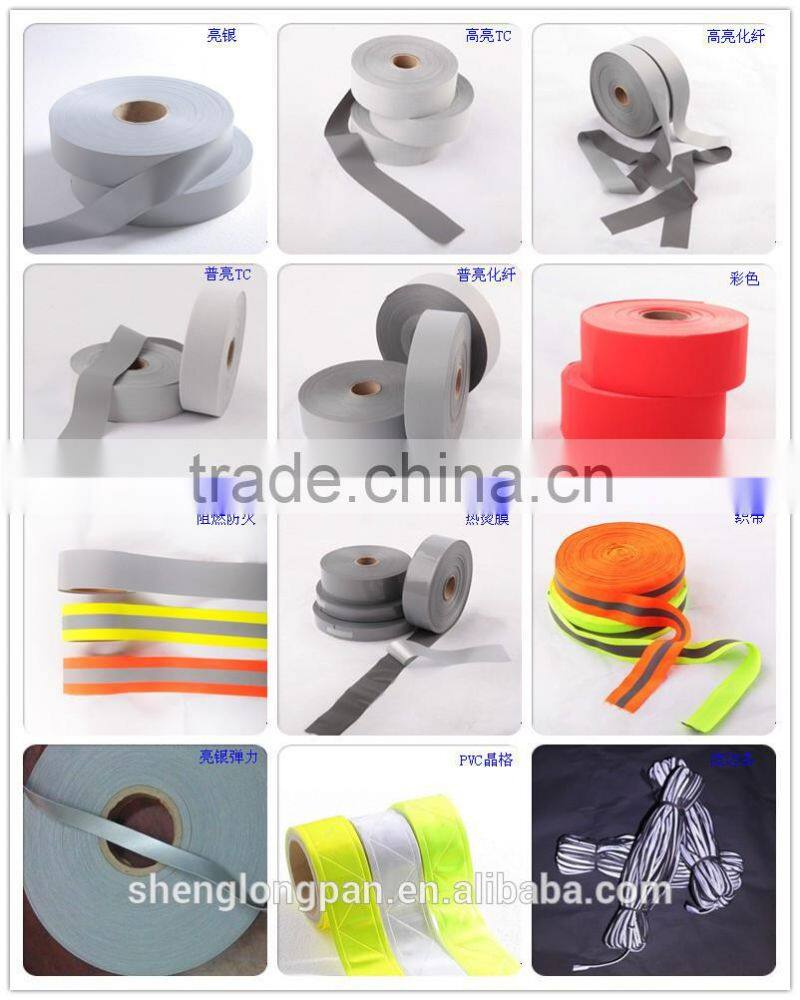

Woven tape
Felt

About Aramid Fabrics

1	What is Aramid fiber Fabric ?
	Aramid fiber is a strong, heat-resistant fiber formed of polymers with repeating aromatic groups branching from a carbon backbone. In the polyamide fibers, at least 85% of the amide linkages are attached directly to two aromatic rings. Two types of Aramid materials are used in. Meta Aramid paper which is used for making honeycomb core materials required for sandwich construction Para- Aramid fibers are made by the solution polycondensation of diamines and diacid halides. The oriented Para substituted aromatic units provide a rod like polymer. The rod like structure results in a high glass transition temperature and poor solubility. They are not spinnable by conventional process and hence they are made by the dry- jet wet spinning of liquid crystalline polymer solutions.
2	Why Aramid Fabric is used ?
	High tensile strength, good impact strength, low density lighter than glass, excellent toughness, high abrasion resistance, excellent resistance to fatigue, good wear resistance, negative axial coefficient of thermal expansion.
3	Where Aramid Fabric is used ?
	They are used in aerospace and military applications, for ballistic rated body armor Fabric and ballistic composites, High performance, low weight, flexible armour e.g. Body armour Flak jackets. Anti-ballistic composites e.g. mobile screens Helmets Spall linings Primary armour Insert plates Bomb blankets Vehicle armour.
4	When Aramid Fabric is used?
	Aramid fibers are known for their large hardness and resistance to penetration. Because of their toughness Aramid fibers are used where high impenetrability is required, e.g. bulletproof vests, bike tyres, airplanes wings, and sport equipment. . Aramid is characterized by its excellent resistance to heat, as it neither melts nor ignites in normal levels of oxygen. Aramid is used extensively in the production of protective apparel, air filtration, thermal and electrical insulation.

5	How Aramid Fiber is produced?
	Aramid are manmade organic fibers produced from aromatic polyamides. Polymerization of monomers TDC, PPD along with NMP, CaCl2 solvents results in PPTA.AT this stage chemical and heat resistance properties are obtained but is in powder form. During coagulation extraction with H20 solvent is recovered .Next stage involves dissolving polymer in sulphuric acid at low temp.-10oC.Self oriented liquid crystal molecules are obtained by extrusion which imparts good mechanical properties. Aramid fiber variants are standard modulus, high modulus and high tenacity fibers. Modulus can be increased during heat treatment under tension at 4500C.
6	What are advantages of using aramid fiber reinforcements?
	Aramid fibers show excellent tensile, impact and toughness properties. Also they have no thermal expansion along with vibration absorption and damping properties.
7	What are constrains of aramid fiber reinforcements?
	Aramid fiber shows poor compression strength. They are UV sensitive and have 4% moisture absorption. They are costly compared with other regular reinforcements and machinability is poor.

Balanced Aramide Fabrics

1000 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP190	190	Plain	100

1212 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP170	170	Plain	100
HAT170	170	Twill	100

1610 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP222	225	Plain	100
FLP262	260	Plain	100
FLP262	260	Twill	100
FLP5H262	260	5H Satin	100

2420 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP303	300	Plain	100
FLPT303	300	Twill	100

3000 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP454	450	Plain	100

3220 Dtex Balanced Aramide Fabric

Code	GSM	Fabric Quality	Std. width cm.
FLP405	400	Plain	100
FLP505	500	Plain	100
FLP405	400	Twill	100
FLP505	500	Twill	100
