Polyimide Heater
- 10000 Piece / Pieces per Month
- Shanghai
- Credit Card PayPal
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Other, Polyimide Heater, Polyimide Heater | Power Source: | Other, Electric, Electric |
Place of Origin: | Jiangsu, China | Brand Name: | SLP | Model Number: | Polyimide Heater |
Dimension(L*W*H): | 200x200x0.3mm | Weight: | 350g | Voltage: | 12,24 |
Power(W): | 145 | Certification: | UL,SGS,ROHS | Warranty: | 3 Years |
After-sales Service Provided: | Overseas third-party support available |
Product Description

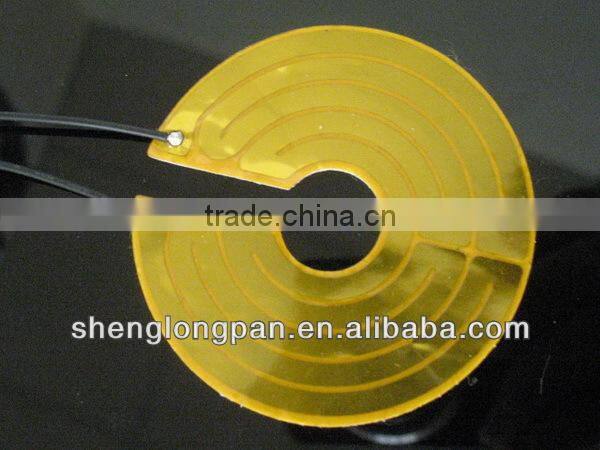

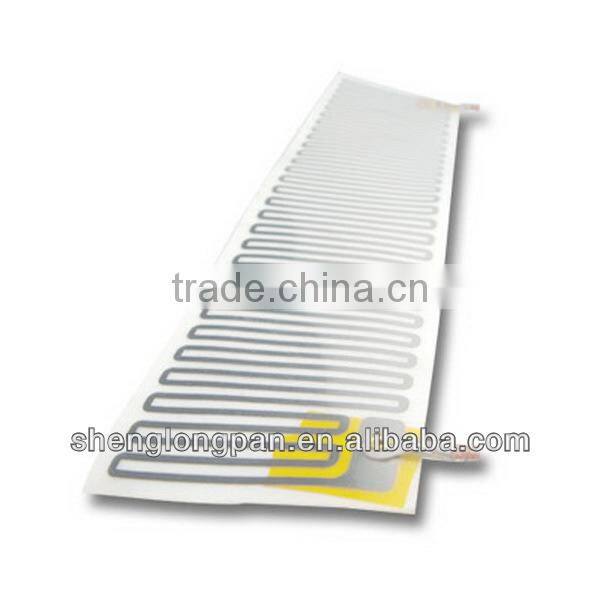

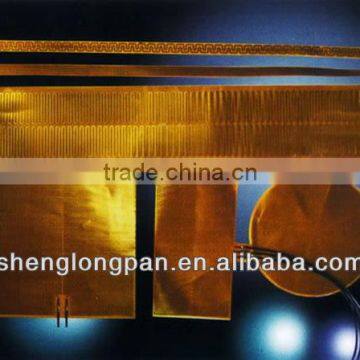

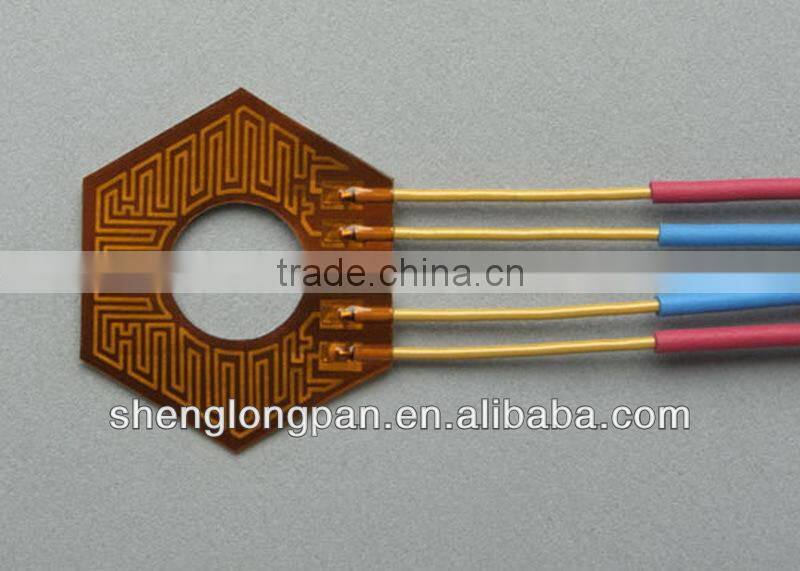

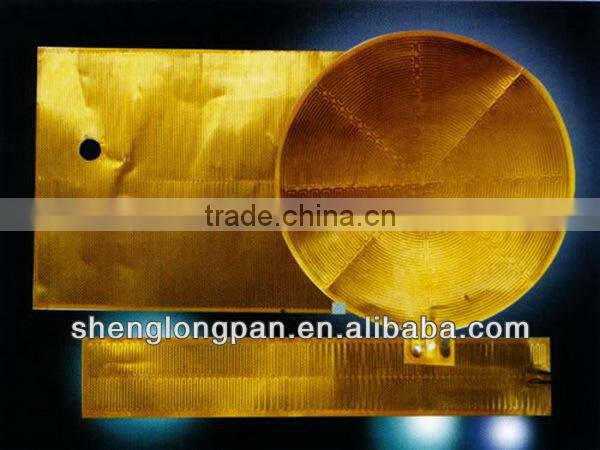

Product Name:Polyimide Heater
Product Description

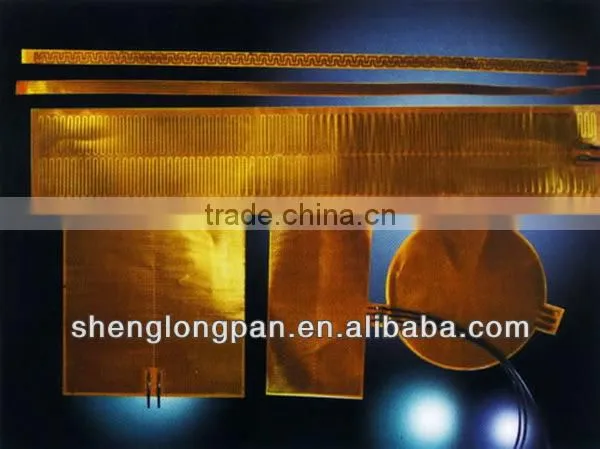

Polyimide heater uses polyimide polymer. This material, in film form, offers many design features such as excellent dielectric strength in very thin cross sections (3,000 volts per mil).We offers etched foil heaters insulated in polyimide polymer with two different bonding systems, FEP and acrylic bonds. The FEP has a temperature capability of up to 500°F and the acrylic is capable of temperatures of 250°F. Polyimide heaters offer many design opportunities and can be combined in assemblies along with sensors, wiring harnesses and connectors to provide our customers with assemblies ready to install in their equipment.Polyimide heaters can be installed with pressure sensitive adhesive (PSA). They can also be FEP or acrylic bonded directly to heat sinks at the factory. This proprietaryprocess installation offers excellent bonding and good heat transfer capability.
Overview
Polyimide is a thin, semitransparent material with excellent dielectric strength. Polyimide Thermofoil. heaters are ideal for applications with space and weight limitations, or where the heater will be exposed to vacuum, oil, or chemicals.
- Thin, lightweight heaters allow you to apply heat where it's needed, reducing operating costs

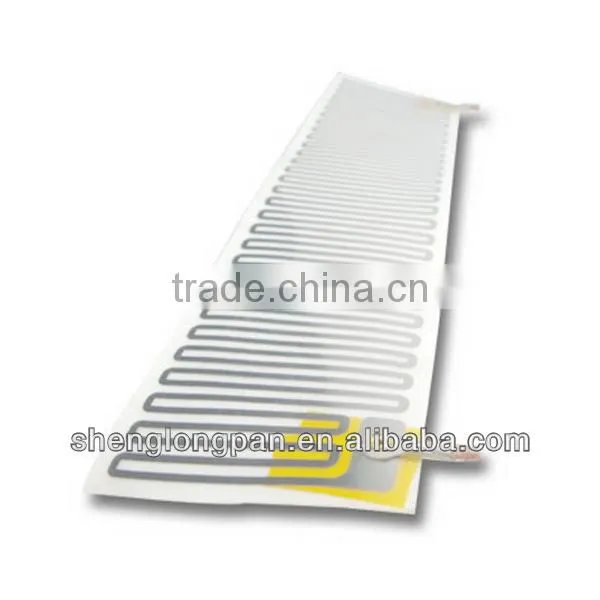

- Etched-foil heating technology provides fast and efficient thermal transfer
- Customized options (i.e. SMT components, flex leads and connectors) offer turnkey solutions to drastically reduce assembly time and increase productivity

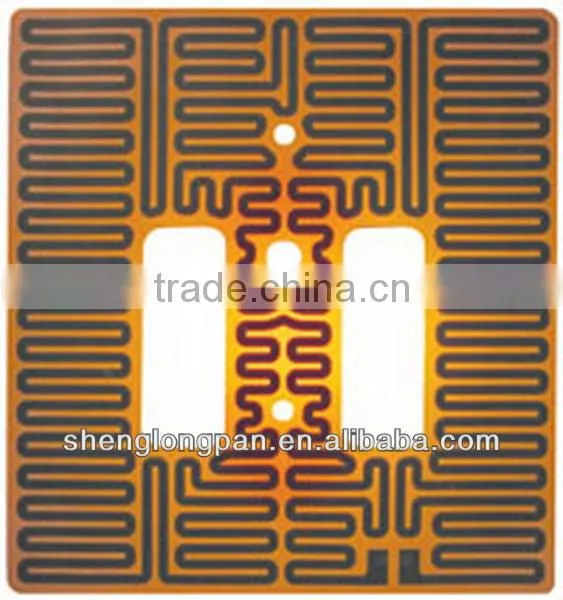

- Custom profiling gives uniform thermal performance of the heating output to improve processing yields and productivity
- FEP internal adhesive for use to 200°C (392°F)
- UL component recognition available
- Suitable for vacuum environments (NASA-RP-1061)
- NASA approved materials for space applications (S-311-P-079)
- Resistant to most chemicals: acids and solvents
- Radiation resistant to 106 rads if built with polyimideinsulated leadwire (custom option)

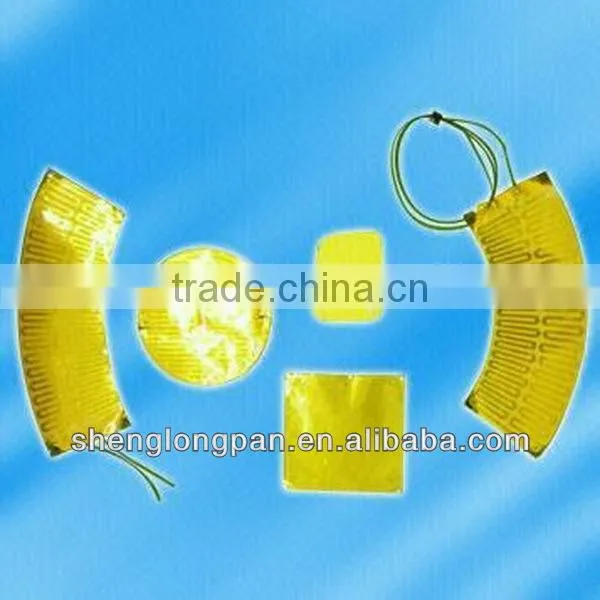

- Very small sizes available
- Fluid immersible designs available (not standard)
Applications:
* Semiconductor wafer processing
* Satellites or other spacecraft

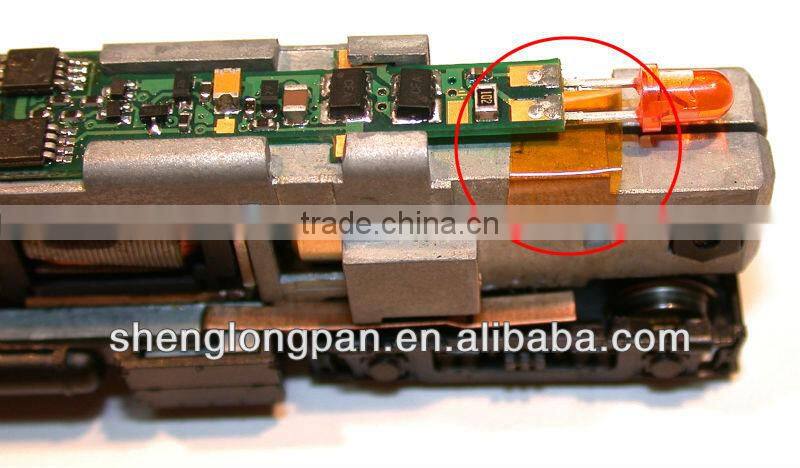

* Heating of electronic components
* Packaging, fusing, and splicing equipment
* Medical equipment such as blood analyzers, respiratory therapy units and hydrotherapy baths
* Freeze protection for military hardware, aircraft instrumentation and hydraulic equipment
* Battery heating
* Foodservice equipment
* Factory bonding and subassemblies
* Laboratory research
* Photographic equipment
* Optical equipment
* Analytical equipment
* Any application requiring a flexible shape or design
How to order
Determine width, length, volts and watts. Specify PSAS if needed. For made-to-order
heaters, please provide the following:
* Quantity
* Size (dimensions)
* Voltage
* Wattage/watt density
* Operating temperature
* Options, such as holes, PSAS
* Will the heater be subject to flexing
Customization Service
Customize 12V,24V,36V 3D printer flexible polyimide heater with CE certification,and we usually say it is polyimide heaters. This is is very thin,the thickness is about 0.3mm,it is very light,so it is widely used on 3D printer.the normal size for 3D printer are follow,
1,200x200mm,12v,200w
2,260x290mm,12v,145w
3,200x250mm,12v,90w and so on. any size,any shape can be customize. please contact with us.
NOTE: we can custom according to your voltage, size, power and so on.
Some features are follow.
NO. | Description | Parameter |
1. | Certification | CE and Rohs |
2. | Voltage range | 1.5v~400v |
3. | Power density range | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
4. | Using temperature range | -60~200°C(-140~392°F) |
5. | Width range | 10mm~500mm(0.39"~19.68") |
6. | Length range | 10mm~1800mm(0.39"~70.86") |
7. | Thickness range | Standard:0.126~0.266mm(0.005"~0.01") |
8. | Plug | Chinese,British, American, European and so on |
9. | Quality guarantee | 1 year |
10. | Life | more than 4 years(normal useful) |
11. | MOQ | 1 piece |
OEM and ODM is welcome,can print your logo |
About factory

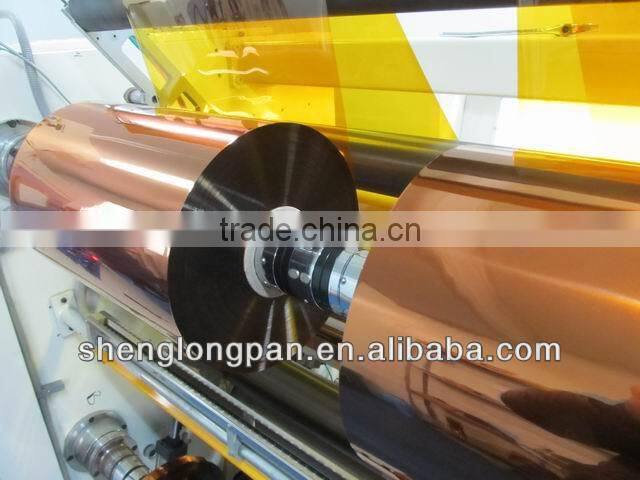

Polyimide film series: | Polyimide Film 6051 Corona-resistant Polyimide Film (CR Film) Polyimide Film with F46 (FEP) Tape |
Adhesive tape series | Polyimide Film with Acrylic Adhesive Tape Polyimide Film with Silicone Adhesive Tape |
Composite material series | Composite material (NHN, NMN) Mica insulation material (mica tape, mica foil and mica board). |

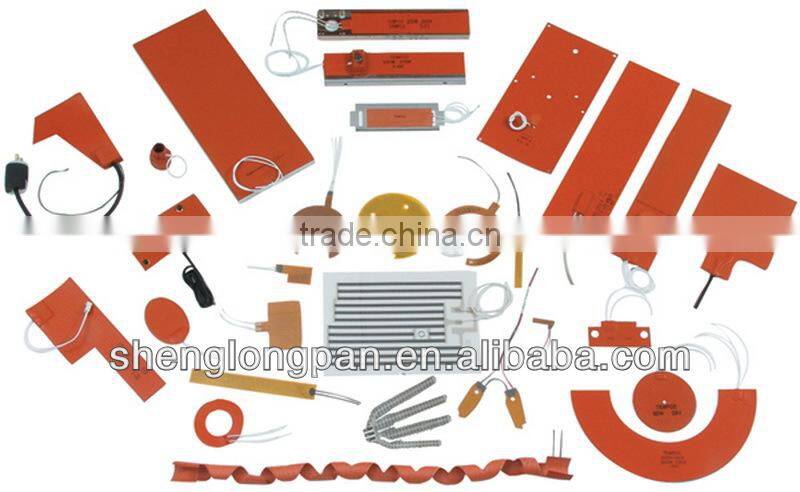

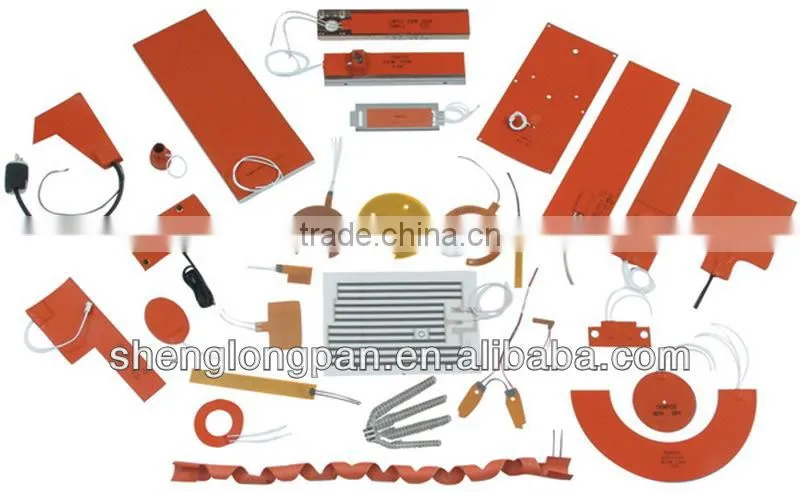

Flexible heaters | Silicone rubber heaters Drum heaters PET heaters Flexible mica heaters |
WHO WE ARE
Our policy is to achieve customers' satisfaction both by providing them with high level product quality and services that meet or exceed their expectation. Our aim is to ensure that our clients continue to put their faith in us for many years to come.
ABOUT US
OUR THINKING
We truly believe in long term relationship with our clients and our motto is customer satisfaction. We always believe in supplying best quality products at most reasonable price.
OUR GOALS
High Quality - We put every effort to provide products for our customers with highest standards of value, quality, service and integrity.
Employee Safety - Employees are valuable assets of any good company. Therefore our endeavour is to provide a safe and healthy work environment for our employees.
Environmental protection - We care for environment and our facility work in an environmental friendly manner.
On Time Delivery - We deliver when we promise!
