Help CenterHigh Quality Epoxy Glass Tube
Related Products
Specifications
1,High mechanical properties2,High oil resistance
3,Crtain dielectric property.
4, Wall thickness: 1.0-300mm

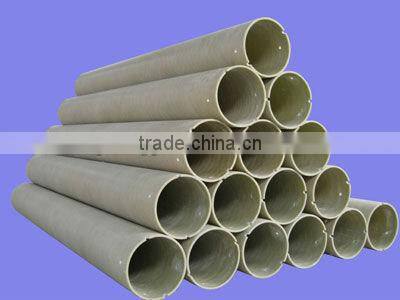

Epoxy Fiberglass Tube
Double unsulation tubing is manufactured with glassfiber and thermal plastic epoxyresin.It is braided by glassfiber in high pressure. It adopts reasonable helical angle and suitable tensile strength.To make sure the pressure is equal to every strand and form a stable structure. UL and ROHS compliant.It is widely applied to dynamoelectric tool, home appliances, park tool and other electricity equipments.
Product Characteristics
Main advantages
- compressing and assisting tool - Precision and automate equipment (600pcs/hr)
- Reduce cost - Tube can be compressed, the other material can reuse.
- Excellent electricity design - UL registered material (NFW -G-10)
Other feature
- Flexible design and size - Simple design and save time
- Lead time is only 4~6 weeks if reassemble. - Reduce changing time
- No storage time limited (The storage molding material is 60-120 days)
- Low power - Environmental
Property
- Electrical application
- Dielectric withstands 14kV/mm -Longitudinal strength: 144MPa
- 5000 V high voltage test for 6 seconds. - Water absorption is less than 0.1% in 24 hours
- Density hits 1.85 g/m3 - Volume resistivity:1015
- Softening point: 240°C - NFW-G-10
- Insulation grade H - Min thickness:0.074 mm
- Temperature: 180°C - UL 94 Flammability is 94HB
- Standard tolerance
- ID: ±0.0010” ±0.025mm - length±0.010” ±0.25mm
- OD±0.0005” ±0.0125mm - Concentricity: (TIR) 0.004” 0.10mm
Application

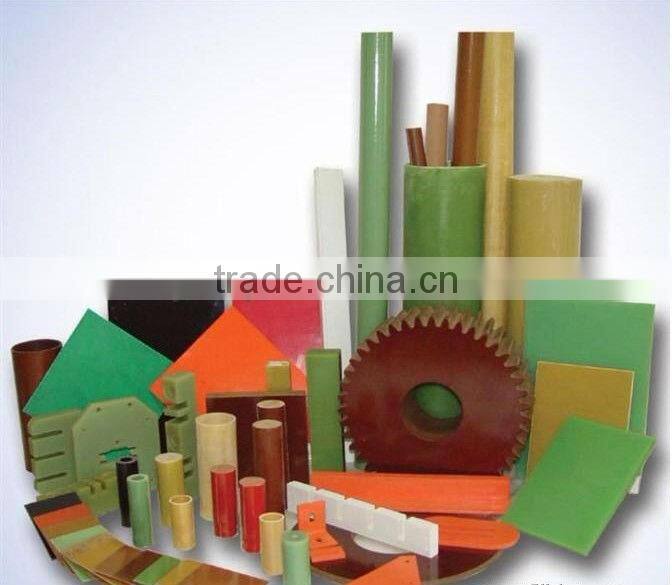

Chemical machine parts , general machine parts and gear ,and generators, Pads, base, baffle etc..Generator ,transformer, fixture, inverter, motor and electric insulation component.
